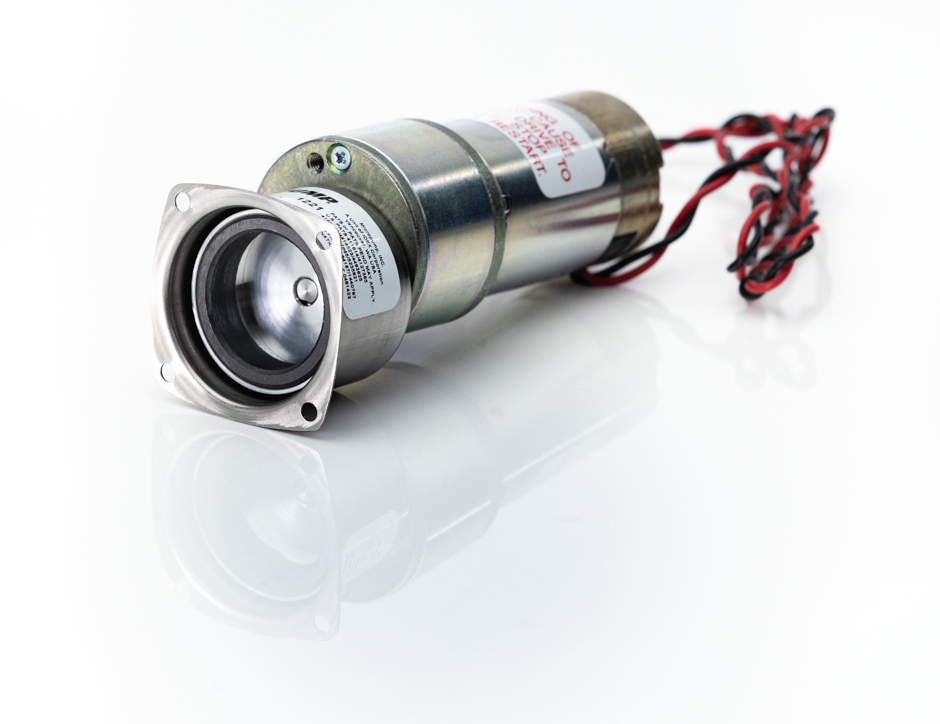

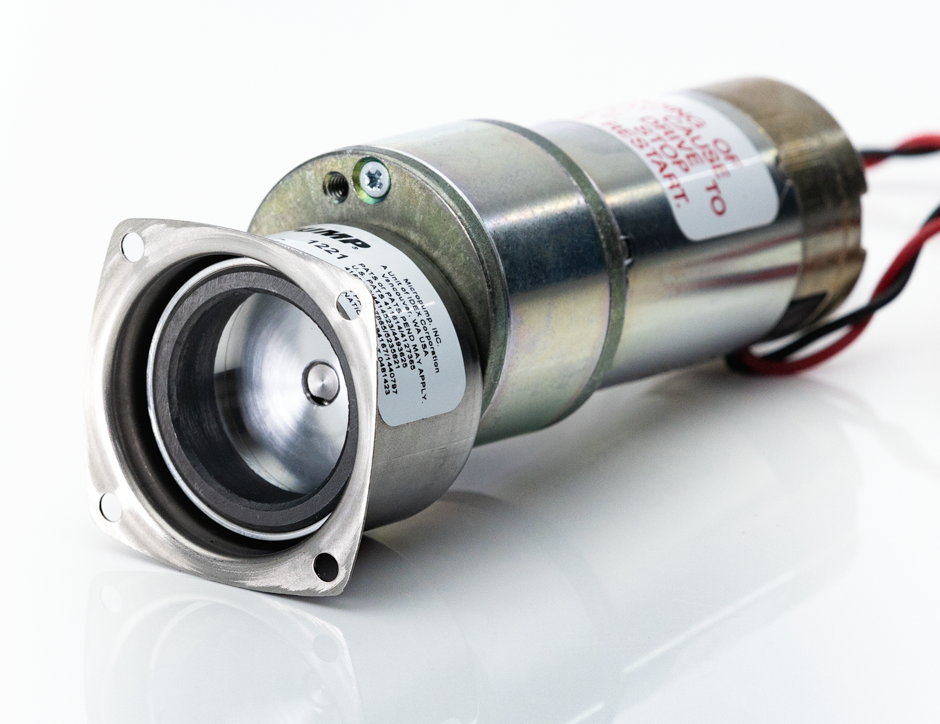

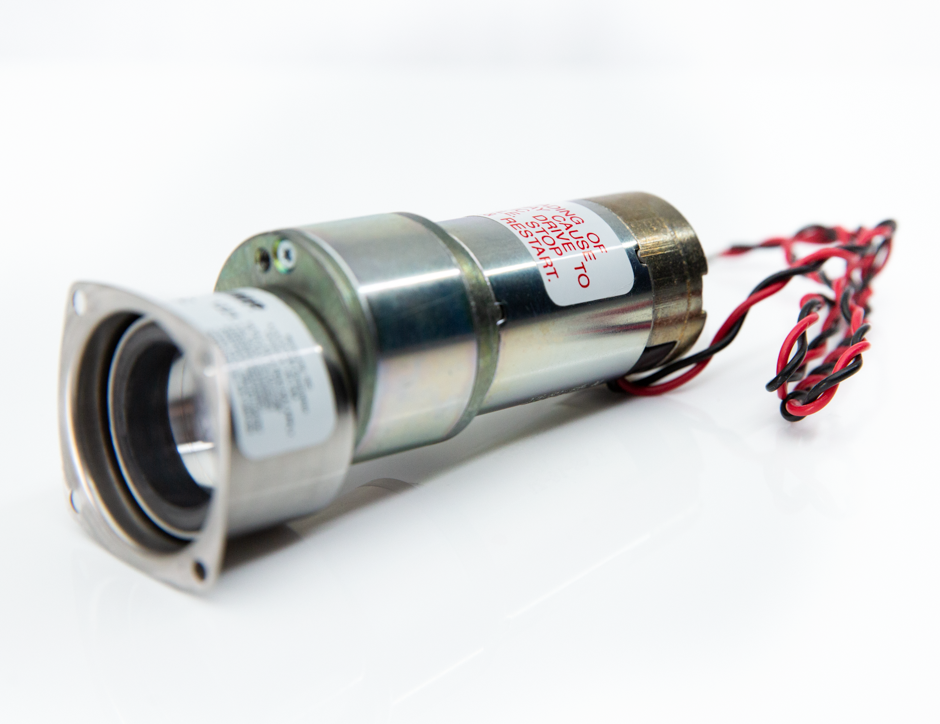

The DC-361.C is an intermittent duty, 0-24VDC, Brush Type, 19:1 Gear Reduction Drive for the GA series pumps.
重量
0.23 kg
0.5 lbs
驱动器类型
有刷驱动
速度（最小值）
100 RPM
速度（最大值）
500 RPM
电源
24 VDC
驱动接口
C-Mount
速度控制
输入电压
连接
开口型
外壳
TENV 全封闭无通风
扭矩（最大值）
127.11 mNm
18 oz-in
功率（最大值）
37 W
产品编号
40055
- 细节
- 特征
- 应用
- 文件
重量
0.23 kg
0.5 lbs
驱动器类型
有刷驱动
速度（最小值）
100 RPM
速度（最大值）
500 RPM
电源
24 VDC
驱动接口
C-Mount
速度控制
输入电压
连接
开口型
外壳
TENV 全封闭无通风
扭矩（最大值）
127.11 mNm
18 oz-in
功率（最大值）
37 W
产品编号
40055
