Product: GA Series

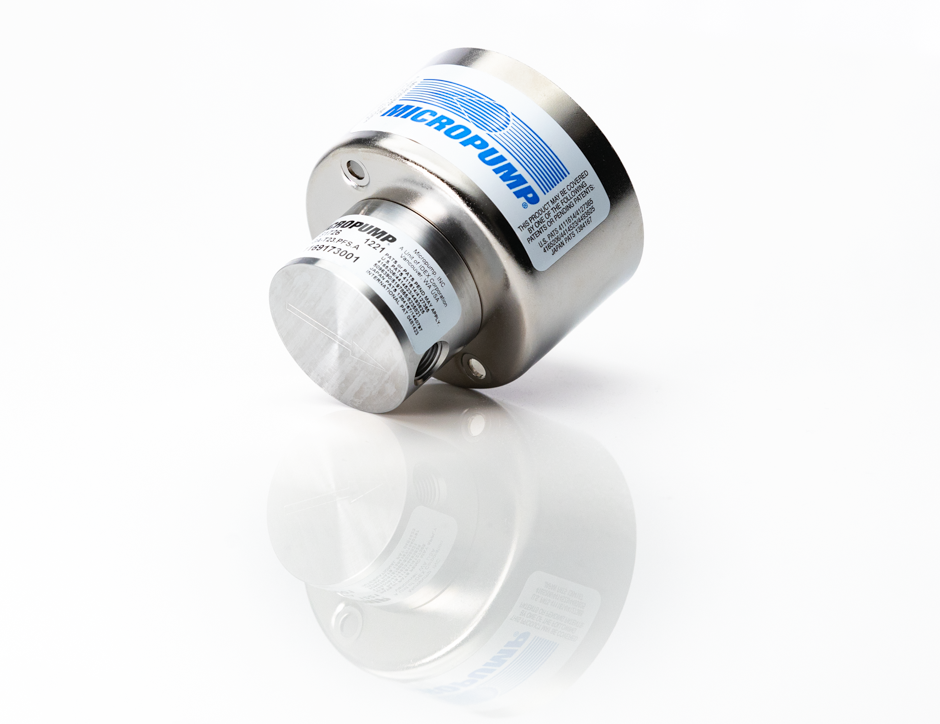

GA Series

Product Type: Suction Shoe Technology

Ask Micropump

Find a Distributor

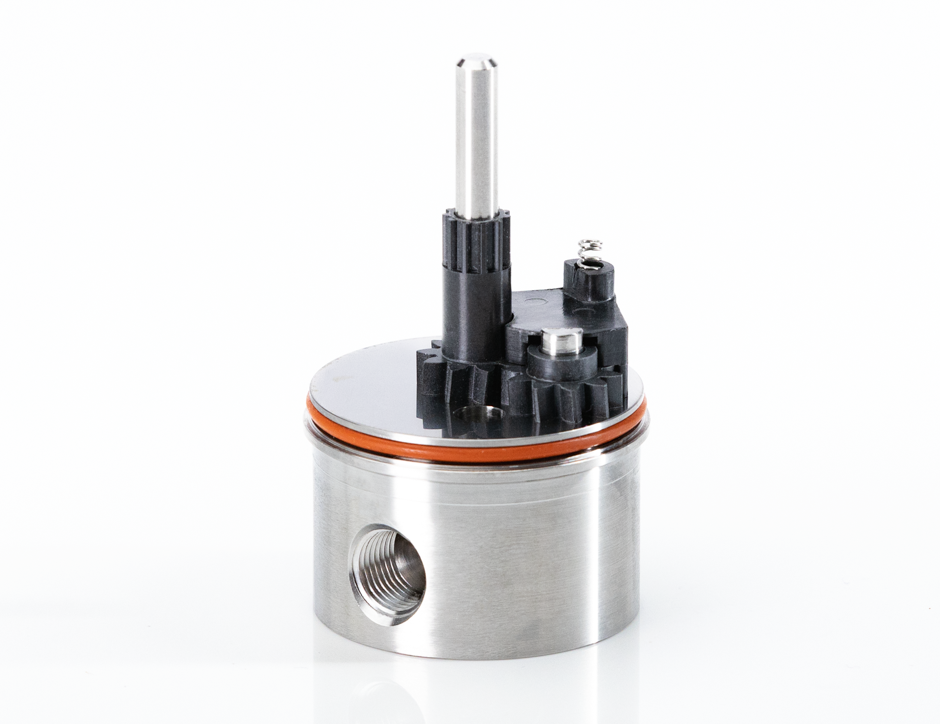

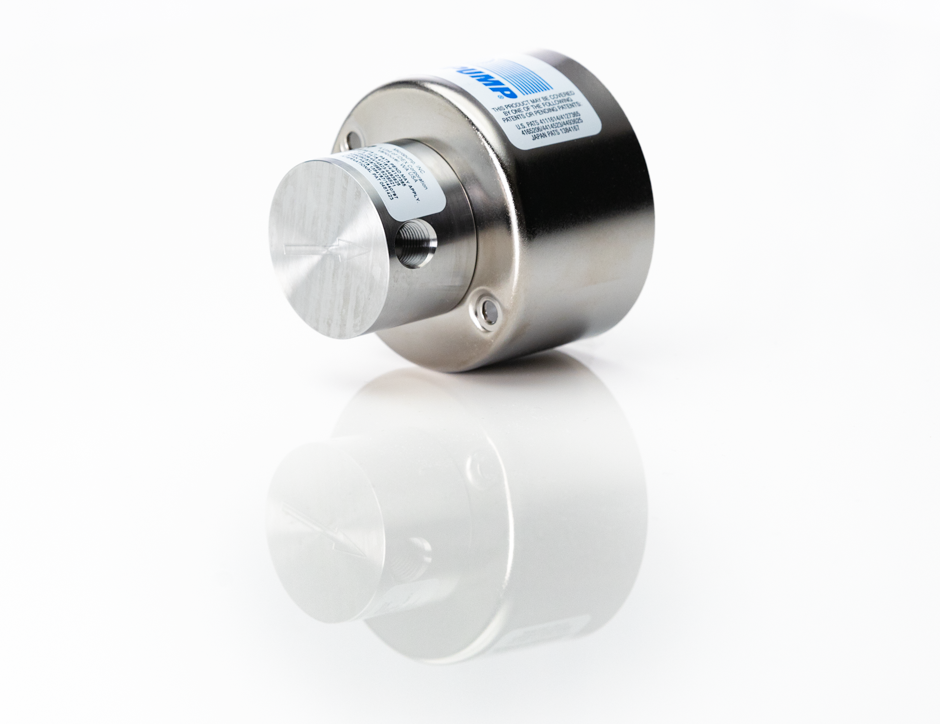

The GA Series high-performance pumps provide precise and pulseless flows. Featuring Micropump's patented suction-shoe design, GA Series pumps self-compensate for wear, ensuring near zero slip and a longer pump life. Pumps are available in a wide range of materials and configurations.

The GA Series are our smallest, most compact size but offer a powerful option for your system.

Displacement

0.017 ml/rev (X21)

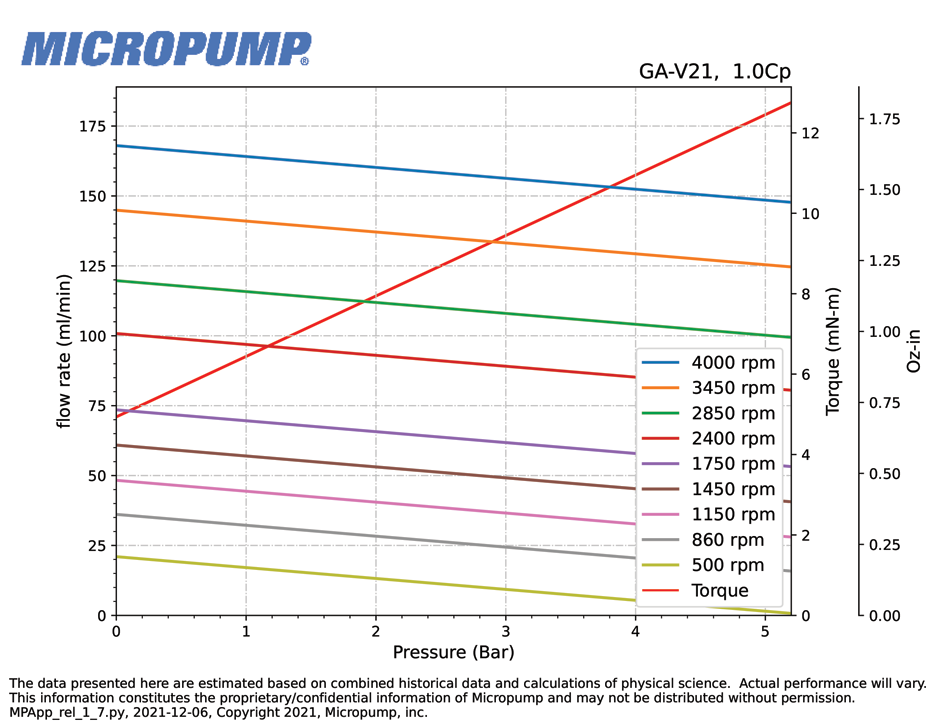

0.042 ml/rev (V21)

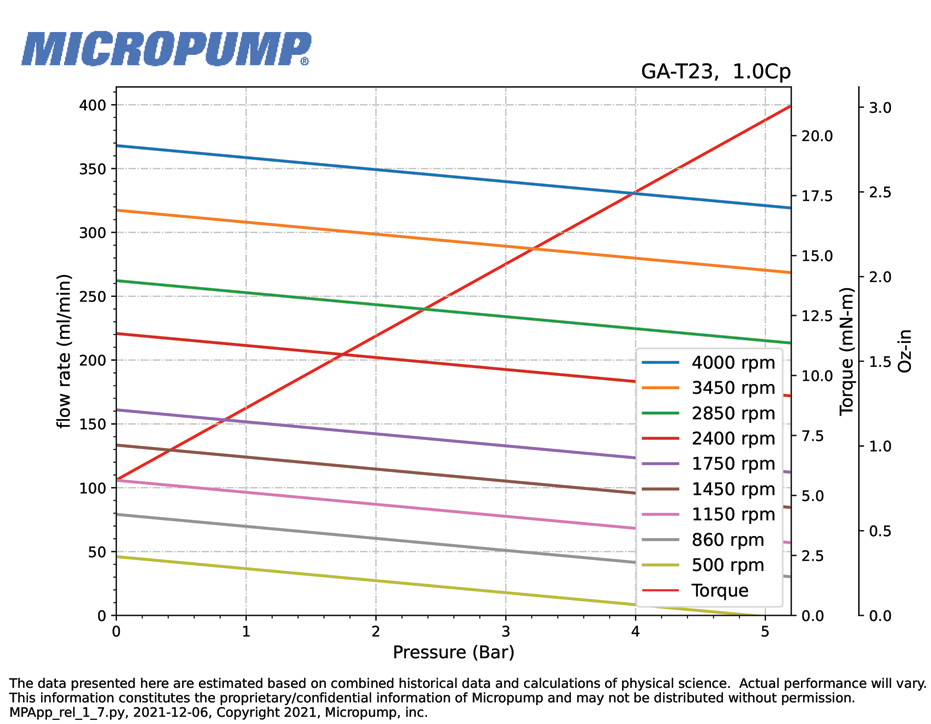

0.092 ml/rev (T23)

Recommended Speed Range

500-5500 RPM

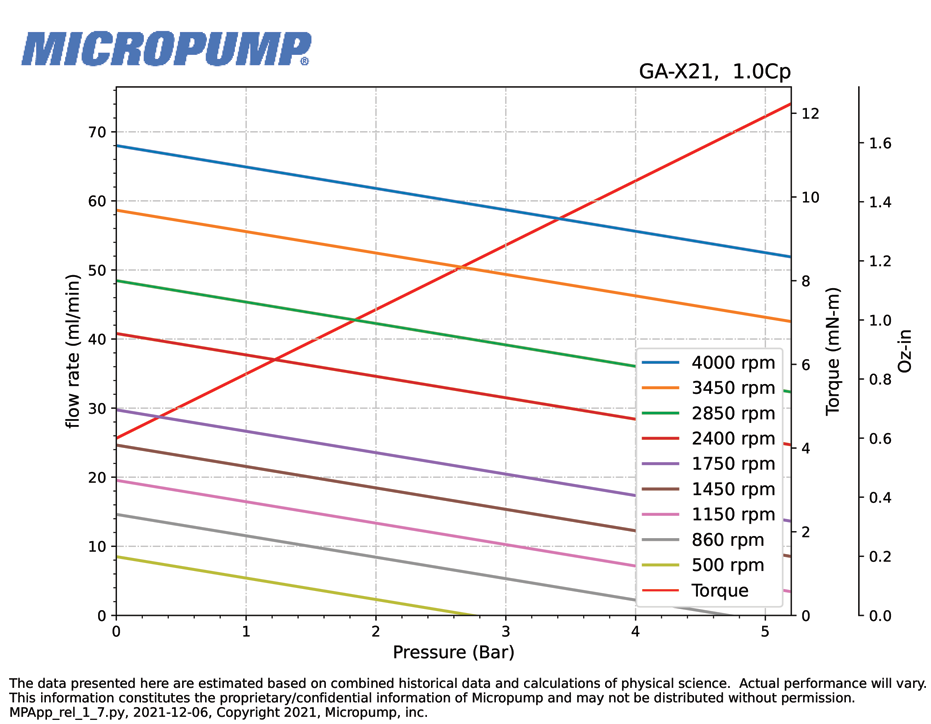

Flow Rate (min)

8.5 mL/min | 0.13 US gal/hr

Flow Rate (max)

506 mL/min | 0.134 US gpm

Differential Pressure (max)

5.2 bar | 75 psi

System Pressure (max)

21 bar | 300 psi

Temperature Range

-46 to 177 °C | -50 to 350 °F

Viscosity Range

0.5 to 1500 cP

Weight

0.31 to 1.1 kg | 0.68 to 2.40 lbs

Standard Ports

1/8"-27 NPT(F)

Details
Features
Applications
Documents

Displacement

0.017 ml/rev (X21)
0.042 ml/rev (V21)
0.092 ml/rev (T23)

Recommended Speed Range

500-5500 RPM

Flow Rate (min)

8.5 mL/min | 0.13 US gal/hr

Flow Rate (max)

506 mL/min | 0.134 US gpm

Differential Pressure (max)

5.2 bar | 75 psi

System Pressure (max)

21 bar | 300 psi

Temperature Range

-46 to 177 °C | -50 to 350 °F

Viscosity Range

0.5 to 1500 cP

Weight

0.31 to 1.1 kg | 0.68 to 2.40 lbs

Standard Ports

1/8"-27 NPT(F)
