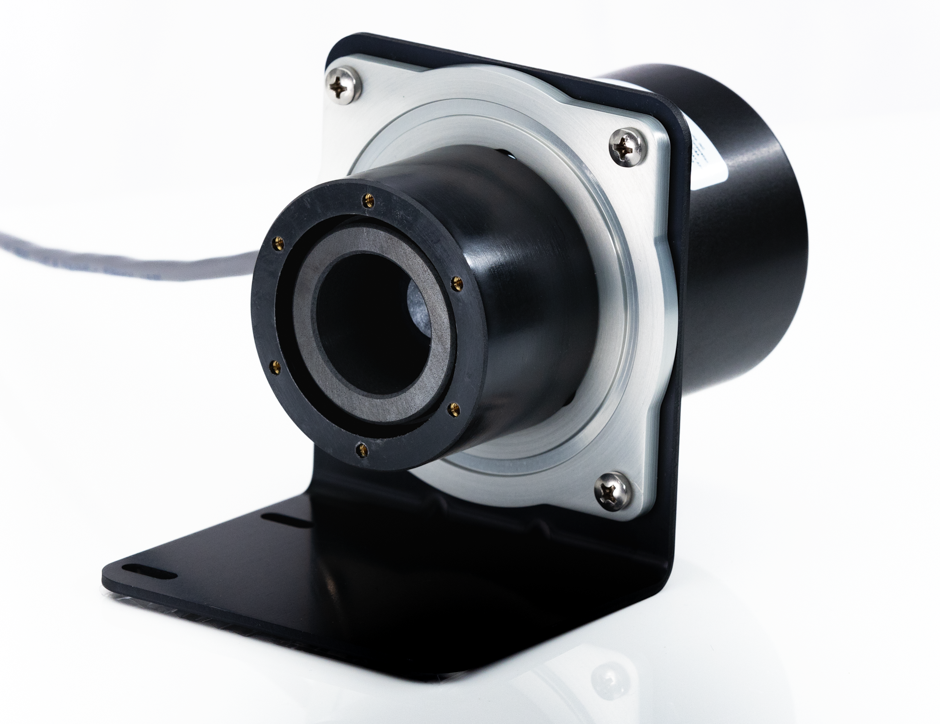

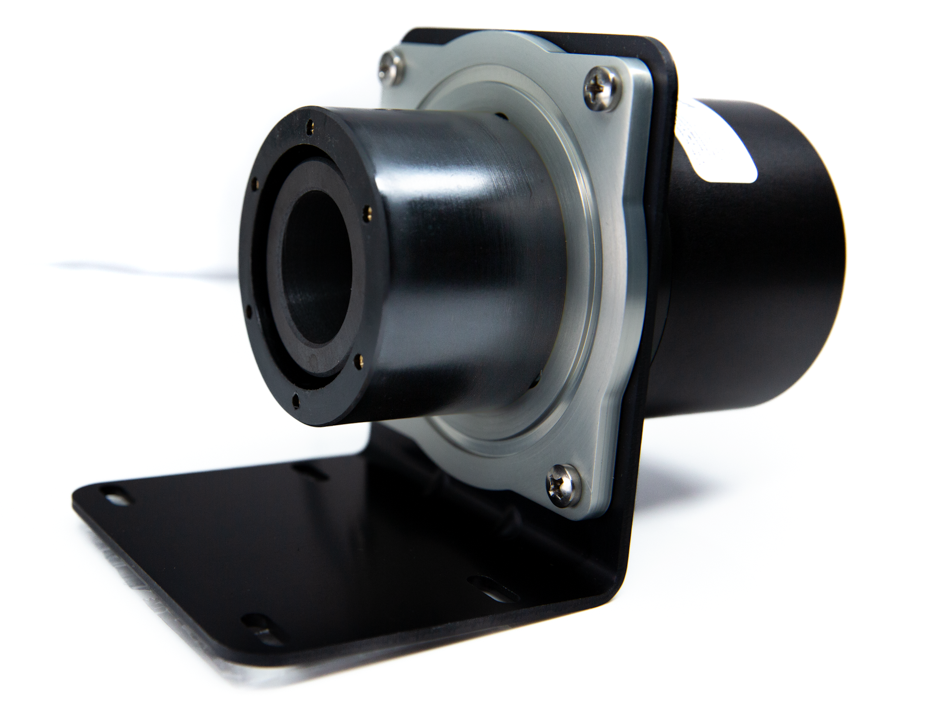

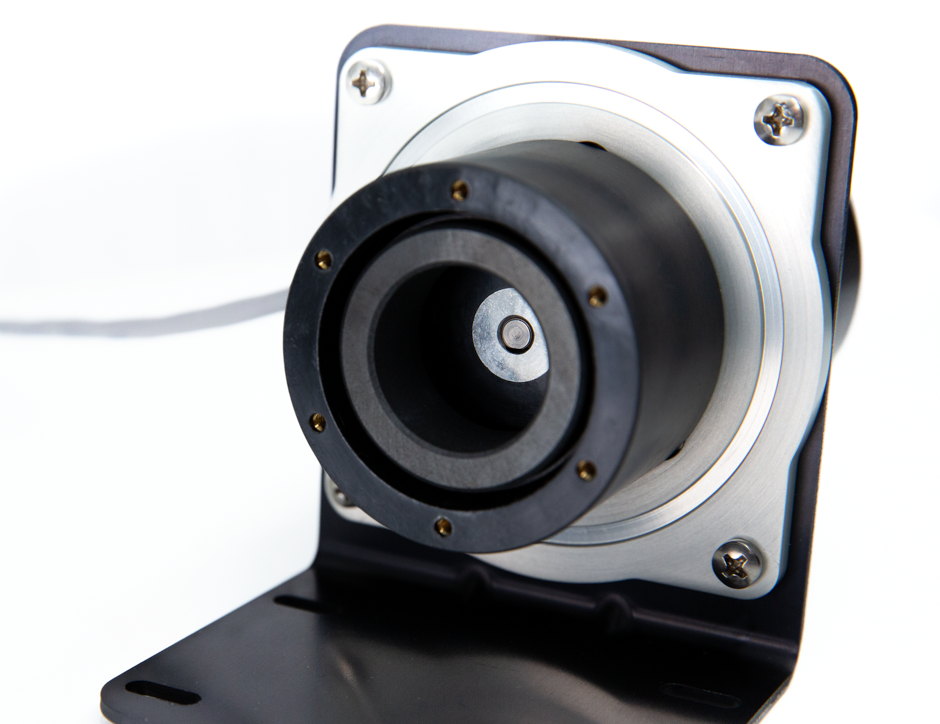

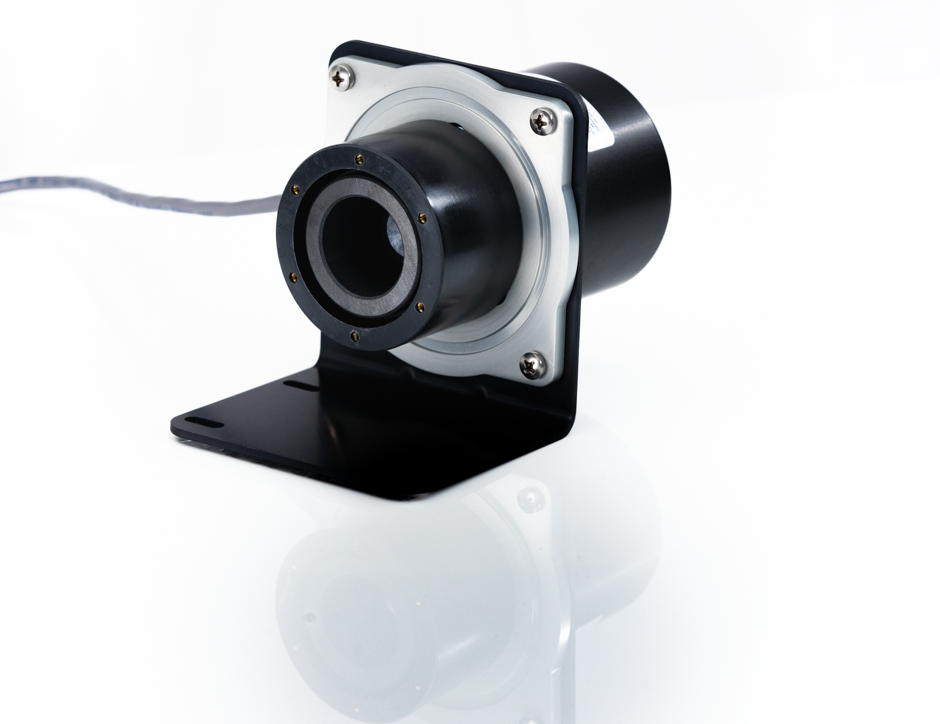

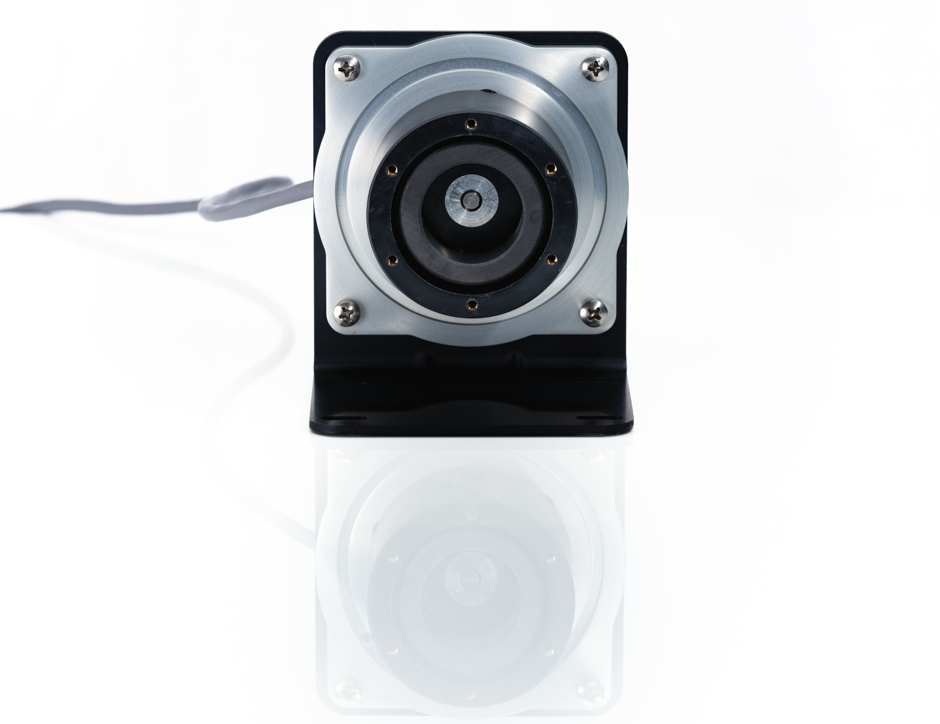

The DB-380.B is a 24VDC Brushless Drive for the popular GA and GJ series pumps. Designed for continuous duty and featuring 0-5VDC speed control and tach output, this drive performs well in a variety of applications. It differs from the DB-380.A only by the drive to pump mount configuration.
重量
0.91 kg | 2 lbs
驱动器类型
无刷驱动
速度（最小值）
500 RPM
速度（最大值）
4600 RPM
电源
24 VDC
驱动接口
B-Mount
速度控制
0-5 VDC
连接
导线
外壳
IP55
扭矩（最大值）
105.92 mNm
15 oz-in
功率（最大值）
70 W
产品编号
83669
