Product: GJ Series

GJ Series

Product Type: Cavity Technology

Ask Micropump

Find a Distributor

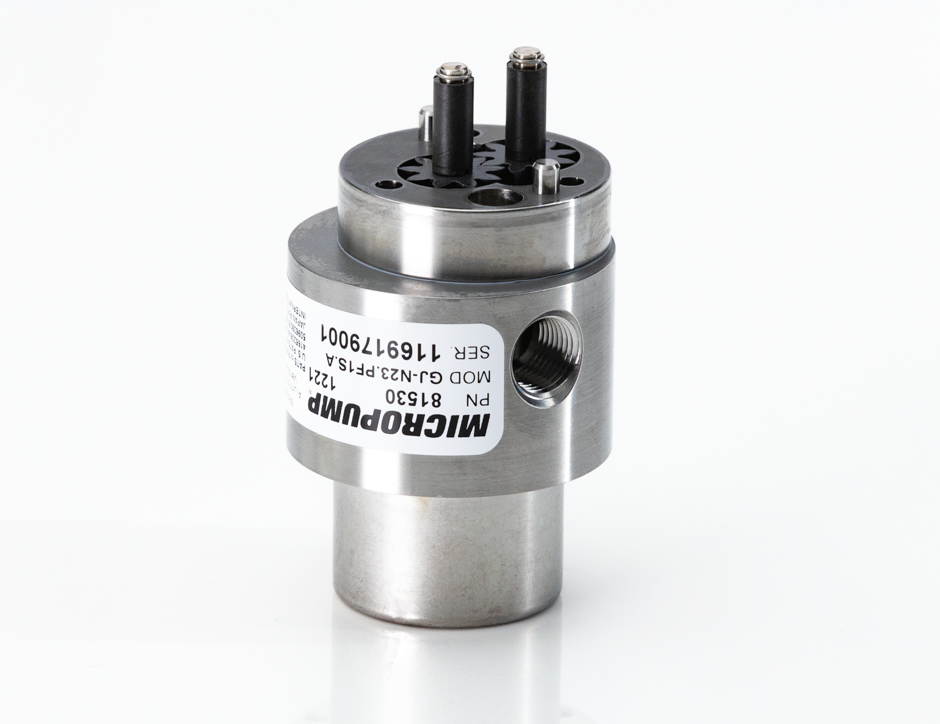

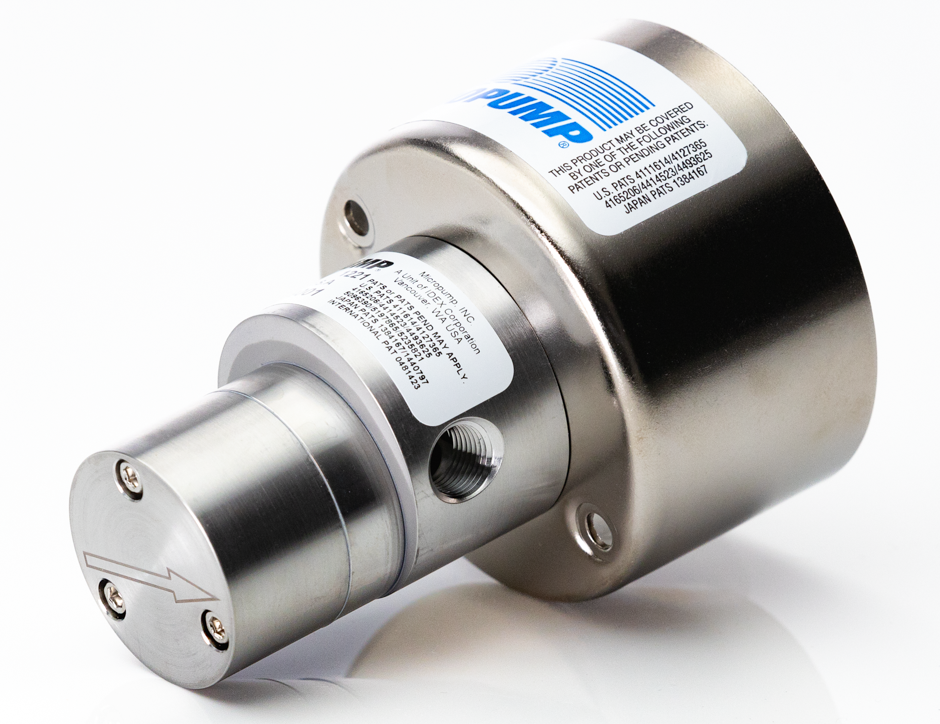

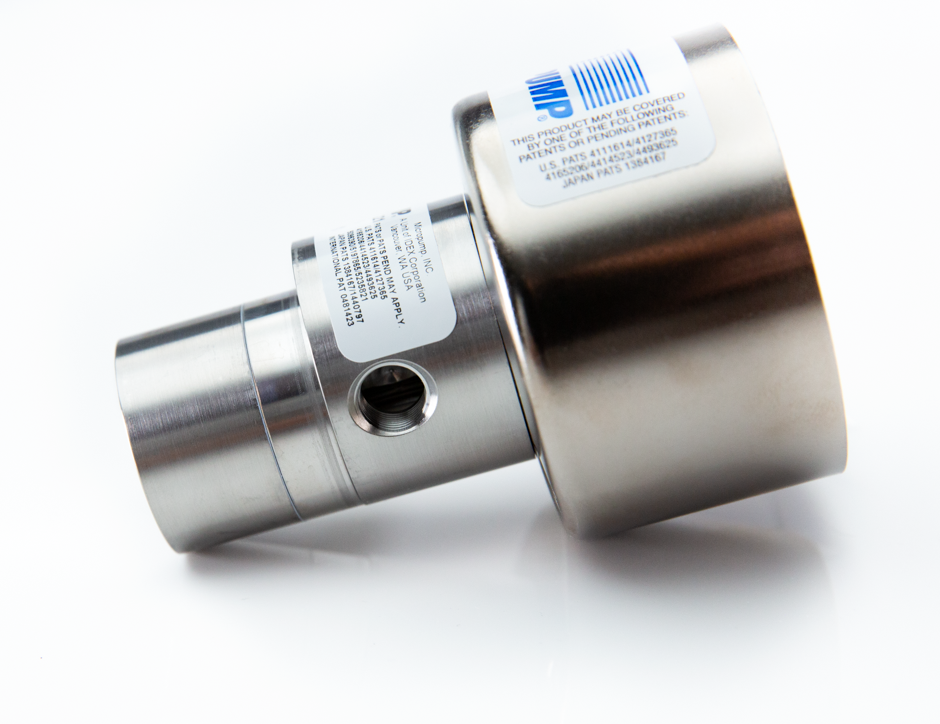

The GJ Series delivers exceptional pumping performance for any high-precision application. These compact, magnetically driven gear pumps feature a cavity style design with no dynamic seals for applications that cannot tolerate leaks. With benefits like chemical resistance, abrasive fluids pumping, smooth, pulseless delivery, and reverse pumping - GJ Series pumps are available with a wide range of options, as well as in standard and OEM configurations.

Displacement

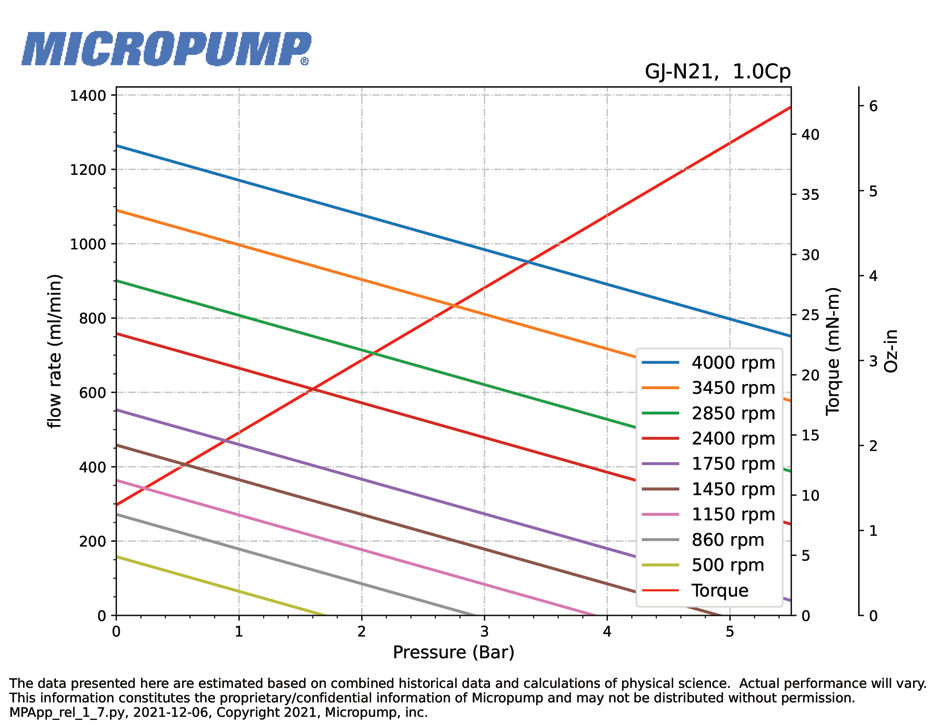

0.316 ml/rev (N21)

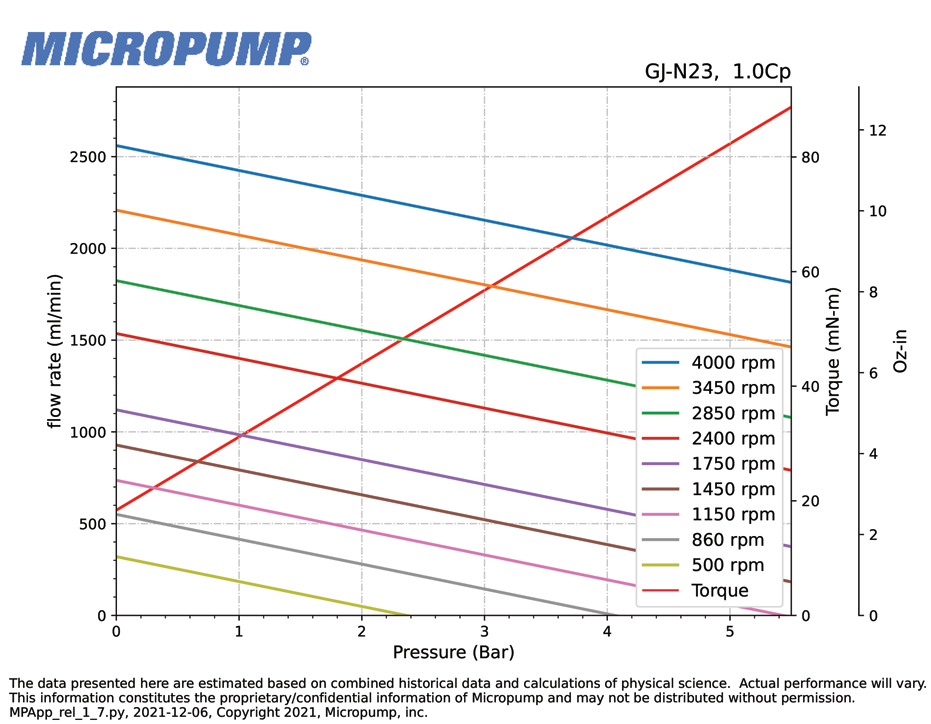

0.64 ml/rev (N23)

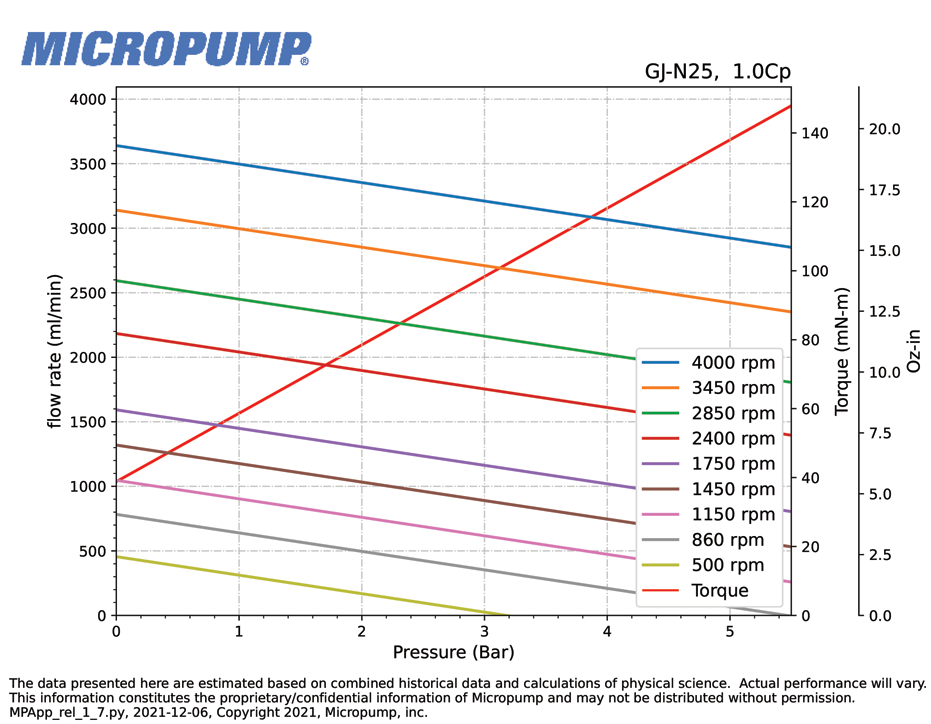

0.91 ml/rev (N25)

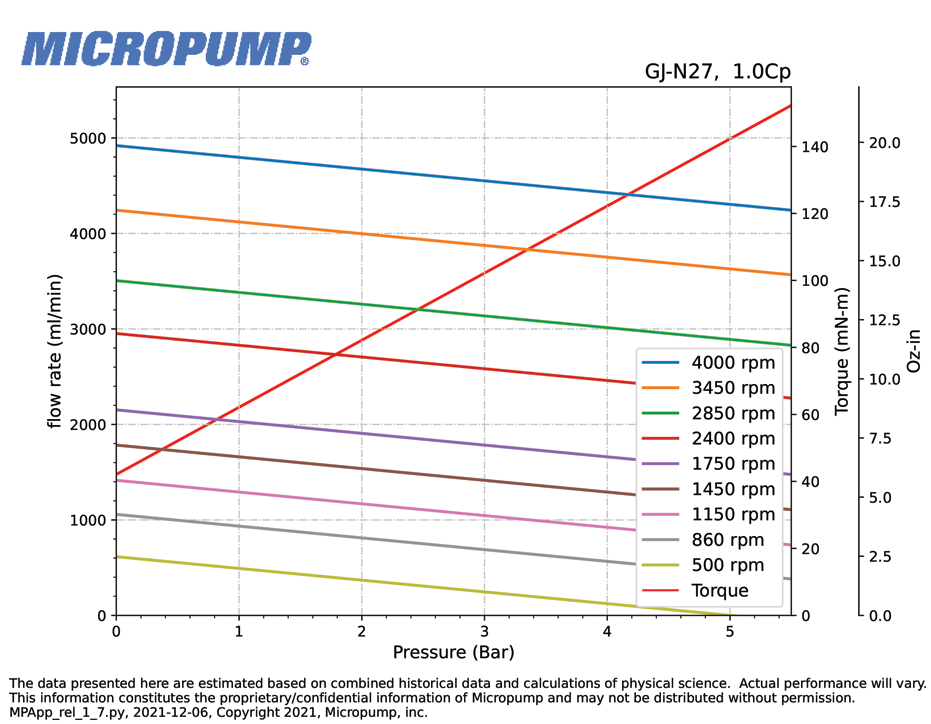

1.23 ml/rev (N27)

Recommended Speed Range

500-5500 RPM

Flow Rate (min)

158 mL/min | 2.5 US gal/hr

Flow Rate (max)

6.8 L/min | 1.8 US gpm

Differential Pressure (max)

5.5 bar | 80 psi

System Pressure (max)

21 bar | 300 psi

Temperature Range

-46 to 121 °C | -50 to 250 °F

Viscosity Range

0.5 to 1500 cP

Weight

0.34 to 1.2 kg | 0.75 to 2.60 lbs

Standard Ports

1/8"-27 NPT(F)

Details
Features
Applications
Documents

Displacement

0.316 ml/rev (N21)
0.64 ml/rev (N23)
0.91 ml/rev (N25)
1.23 ml/rev (N27)

Recommended Speed Range

500-5500 RPM

Flow Rate (min)

158 mL/min | 2.5 US gal/hr

Flow Rate (max)

6.8 L/min | 1.8 US gpm

Differential Pressure (max)

5.5 bar | 80 psi

System Pressure (max)

21 bar | 300 psi

Temperature Range

-46 to 121 °C | -50 to 250 °F

Viscosity Range

0.5 to 1500 cP

Weight

0.34 to 1.2 kg | 0.75 to 2.60 lbs

Standard Ports

1/8"-27 NPT(F)
