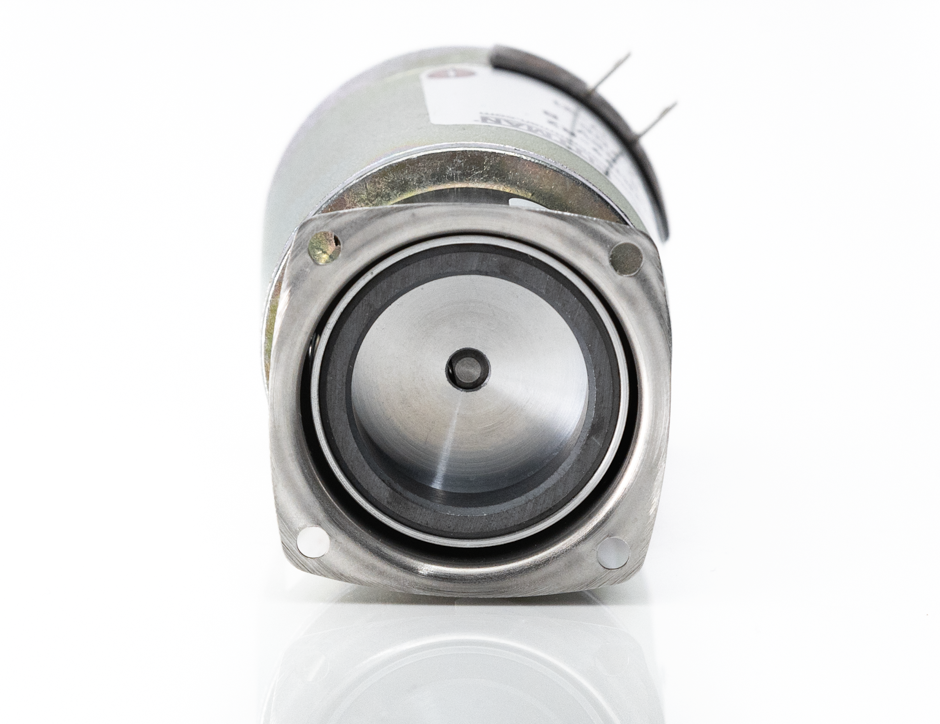

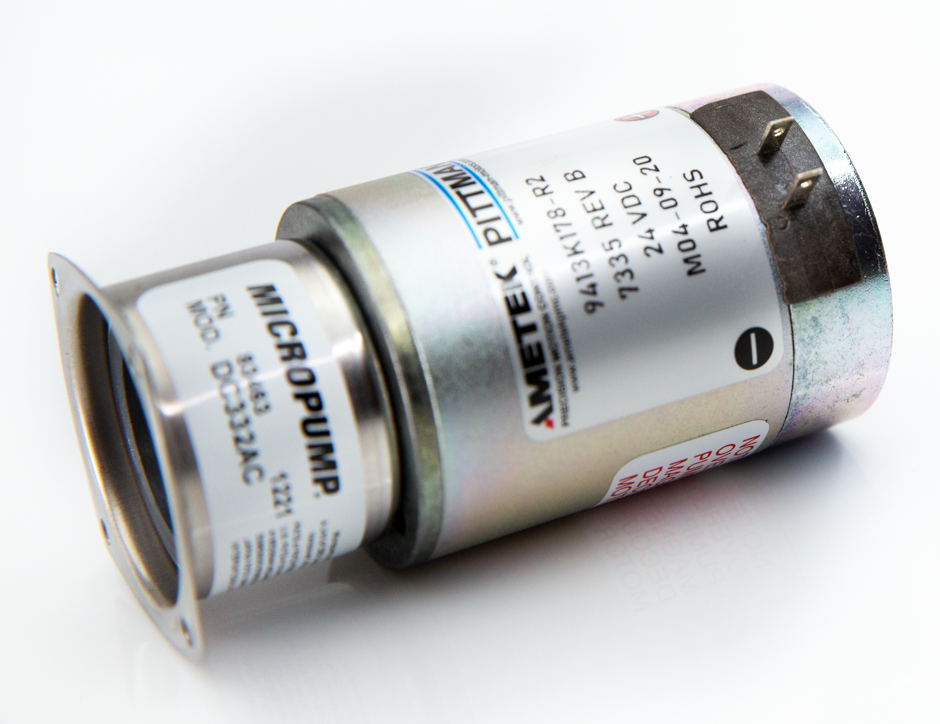

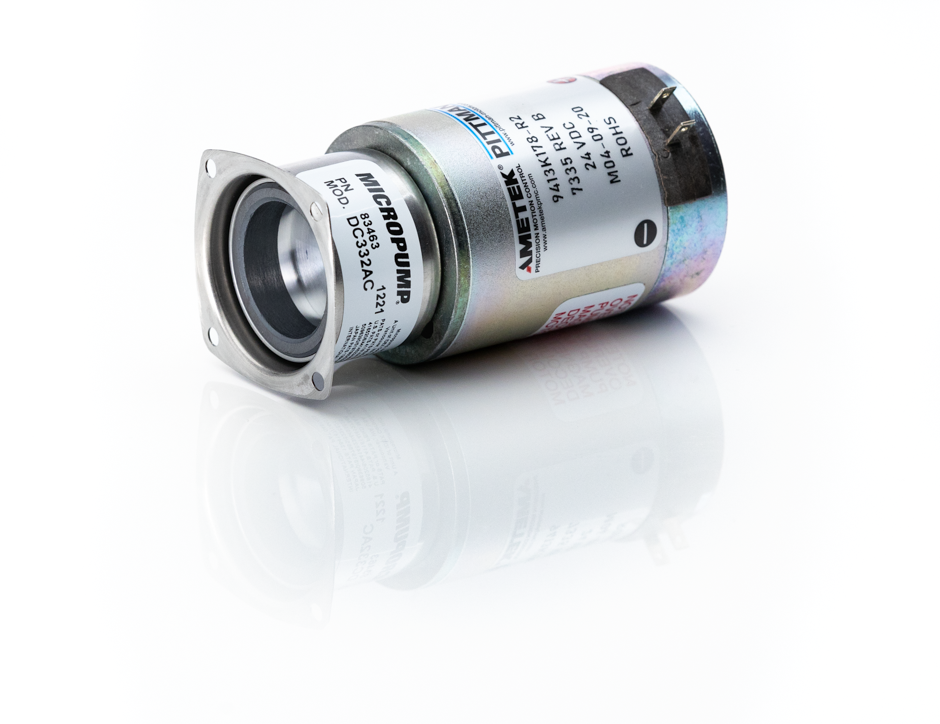

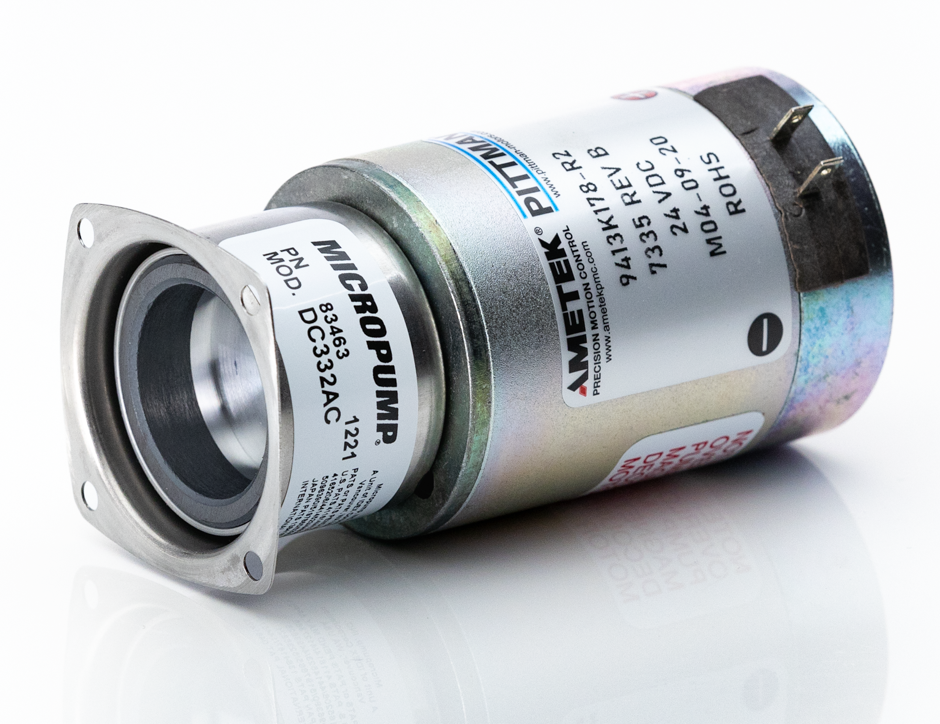

The DC-332A.C is an intermittent duty, 0-24VDC, Brush Type, Permanent Magnet Drive for the GA and GJ (N21) series pumps.
重量
0.23 kg
0.5 lbs
驱动器类型
有刷驱动
速度（最小值）
500 RPM
速度（最大值）
6000 RPM
电源
24 VDC
驱动接口
C-Mount
速度控制
输入电压
连接
开口型
扭矩（最大值）
24.72 mNm
3.5 oz-in
功率（最大值）
11 W
产品编号
83463
- 细节
- 特征
- 应用
- 文件
重量
0.23 kg
0.5 lbs
驱动器类型
有刷驱动
速度（最小值）
500 RPM
速度（最大值）
6000 RPM
电源
24 VDC
驱动接口
C-Mount
速度控制
输入电压
连接
开口型
扭矩（最大值）
24.72 mNm
3.5 oz-in
功率（最大值）
11 W
产品编号
83463
