Product: GB Series

GB Series

Product Type: Suction Shoe Technology

Ask Micropump

Find a Distributor

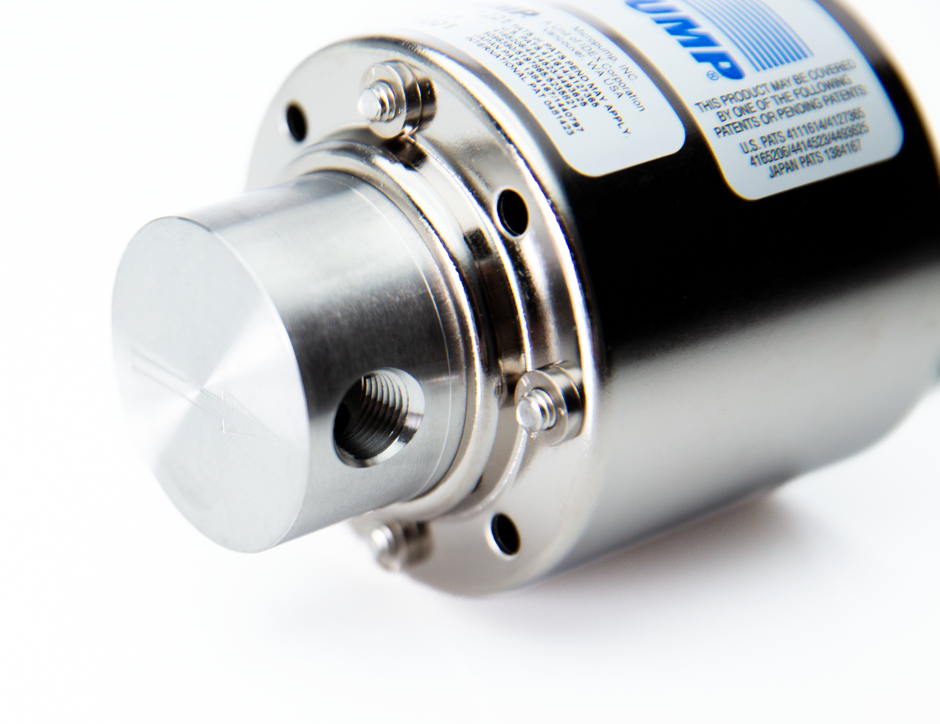

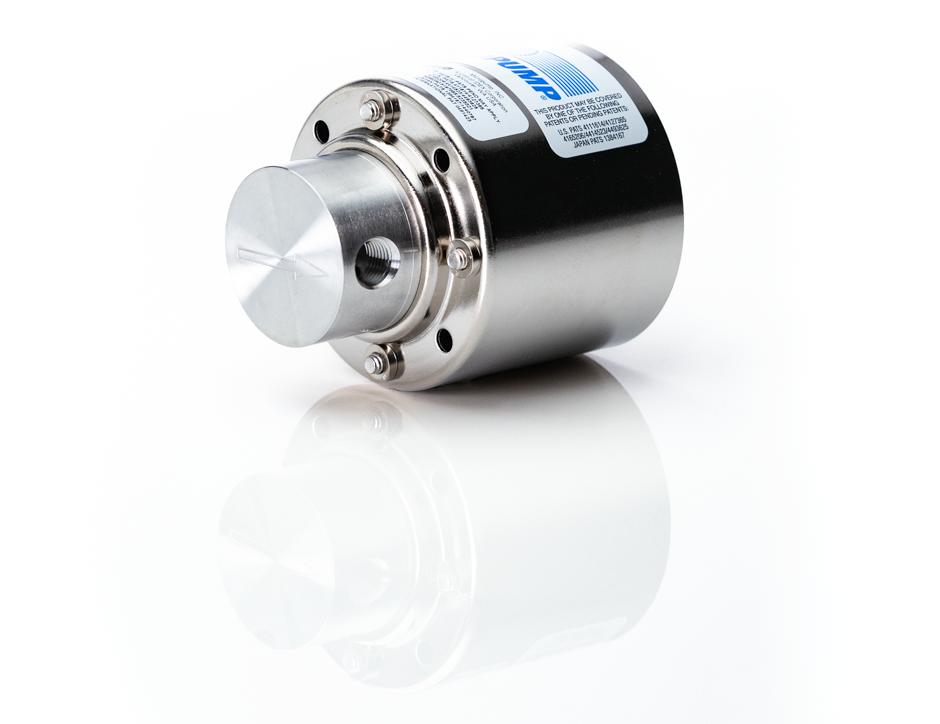

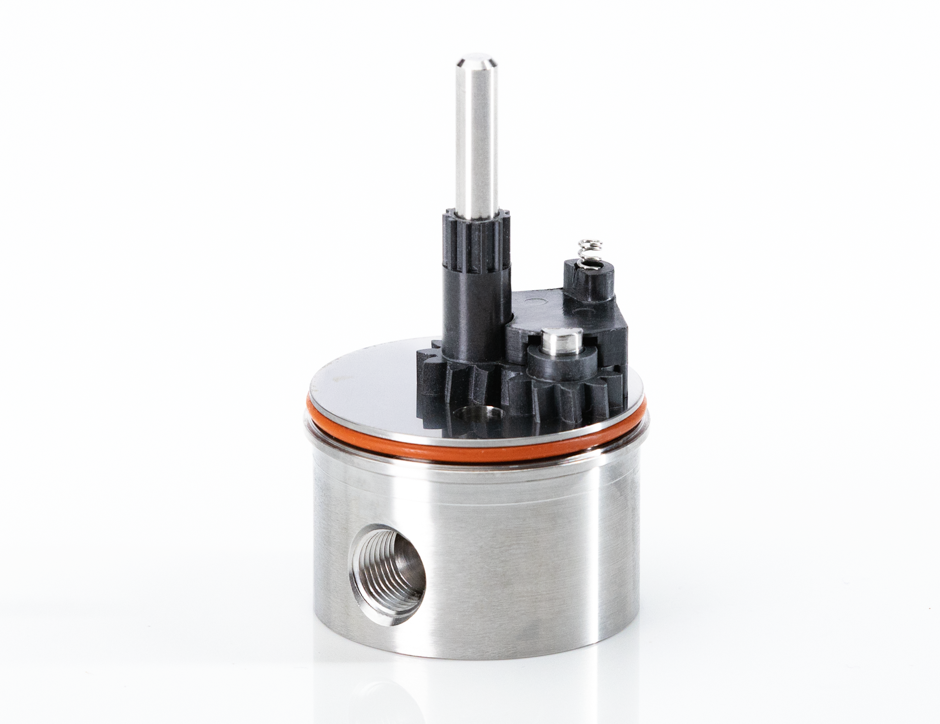

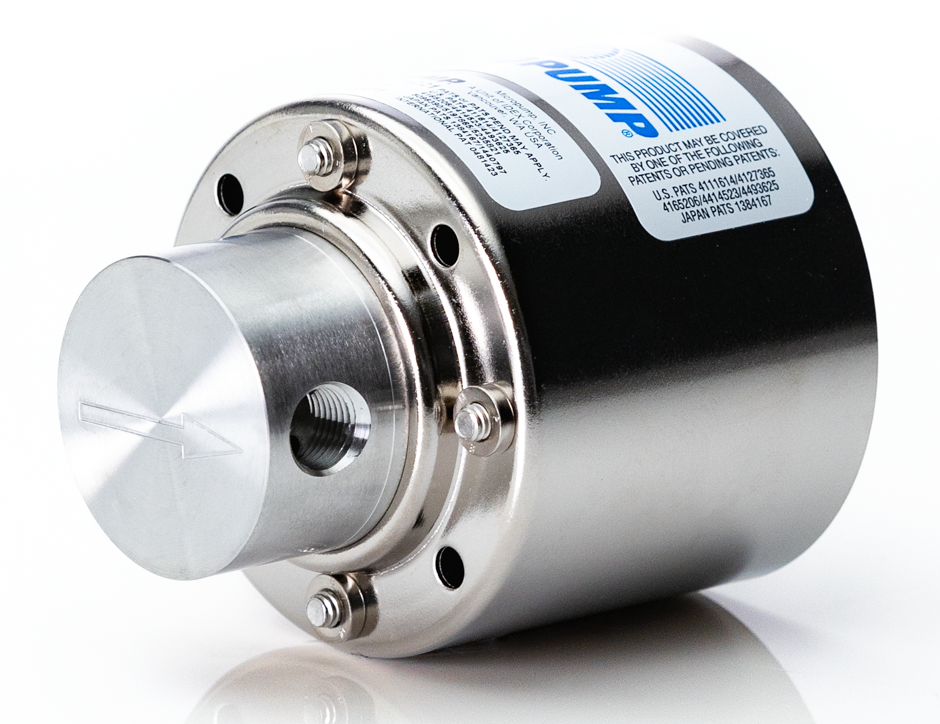

The GB Series magnetic drive gear pumps feature a suction-shoe design that self-compensates for wear, ensuring near zero slip and long pump life. Available in standard or custom configurations, GB Series pumps offer the flexibility to meet a wide range of applications with a compact size. Options include two standard gear sizes, an internal bypass, and variety of materials.

Displacement

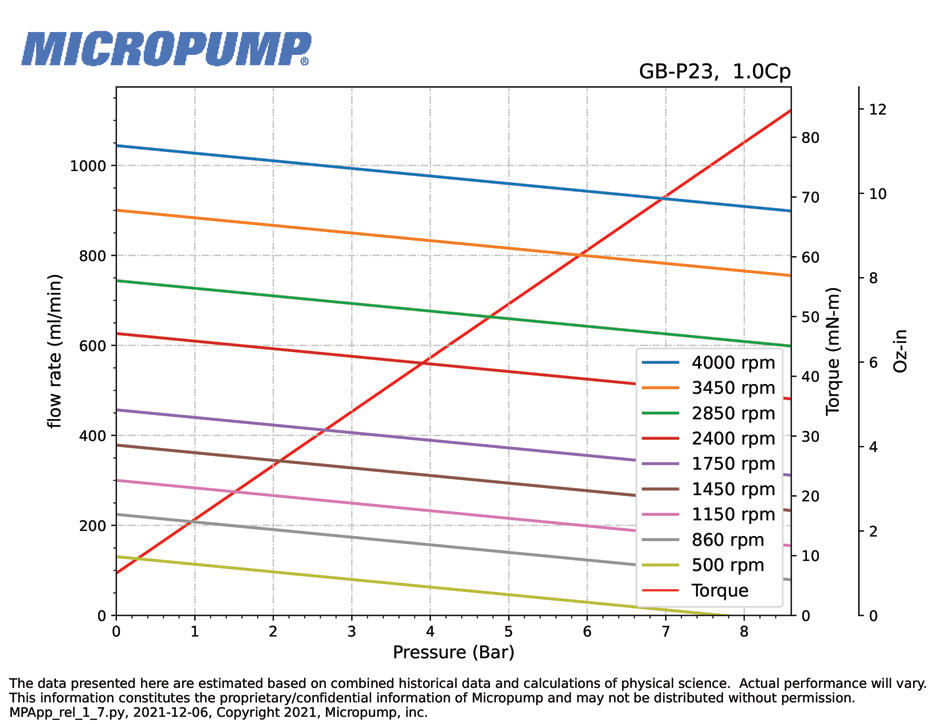

0.26 ml/rev (P23)

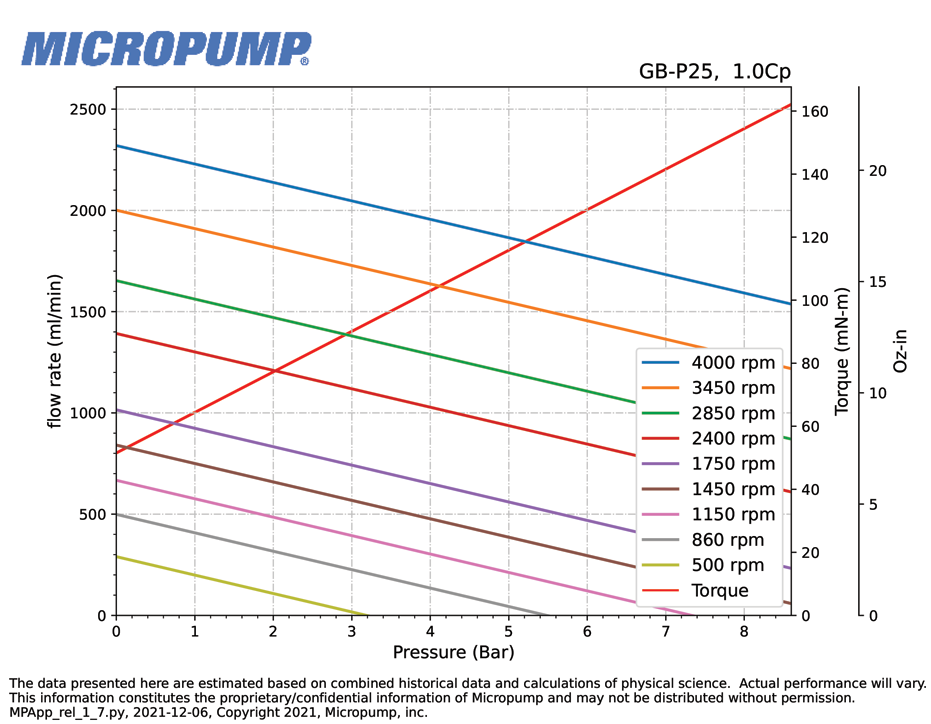

0.58 ml/rev (P25)

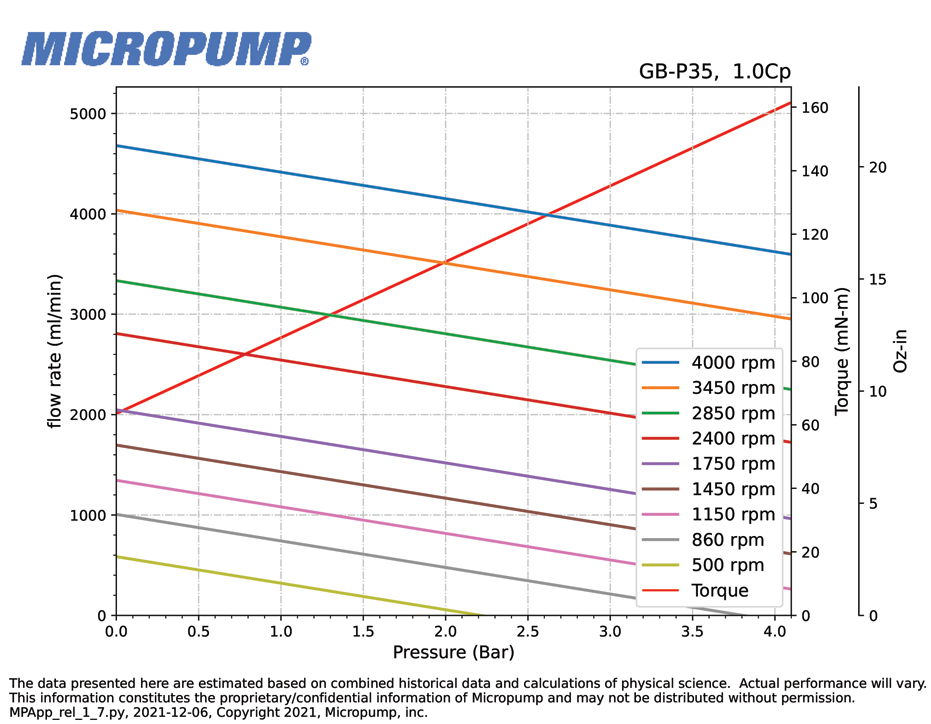

1.17 ml/rev (P35)

Recommended Speed Range

500-5500 RPM

Flow Rate (min)

131 mL/min | 2.1 US gal/hr

Flow Rate (max)

6.4 L/min | 1.70 US gpm

Differential Pressure (max)

8.6 bar | 125 psi

System Pressure (max)

21 bar | 300 psi

Temperature Range

-46 to 177 °C | -50 to 351 °F

Viscosity Range

0.5 to 1500 cP

Weight

0.32 to 1.1 kg | 0.70 to 2.40 lbs

Standard Ports

1/8"-27 NPT(F)

Details
Features
Applications
Documents

Displacement

0.26 ml/rev (P23)
0.58 ml/rev (P25)
1.17 ml/rev (P35)

Recommended Speed Range

500-5500 RPM

Flow Rate (min)

131 mL/min | 2.1 US gal/hr

Flow Rate (max)

6.4 L/min | 1.70 US gpm

Differential Pressure (max)

8.6 bar | 125 psi

System Pressure (max)

21 bar | 300 psi

Temperature Range

-46 to 177 °C | -50 to 351 °F

Viscosity Range

0.5 to 1500 cP

Weight

0.32 to 1.1 kg | 0.70 to 2.40 lbs

Standard Ports

1/8"-27 NPT(F)
