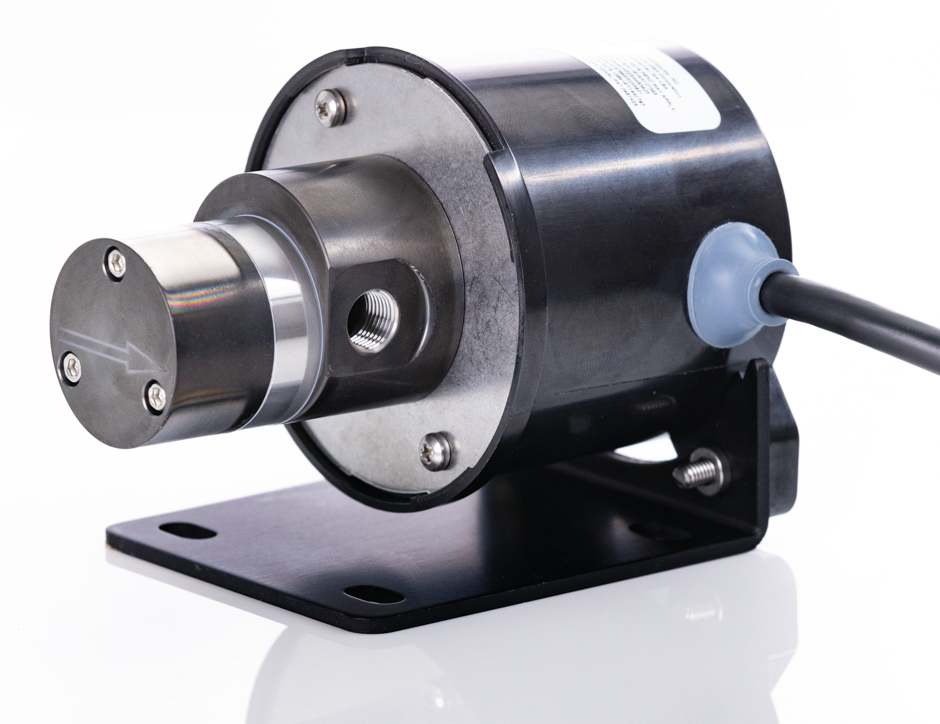

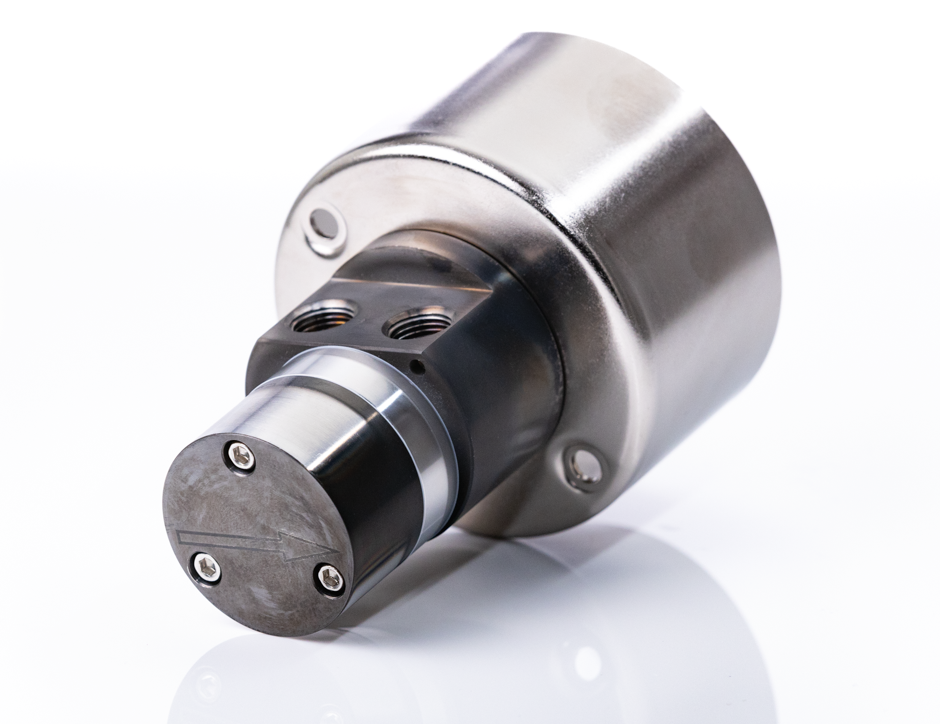

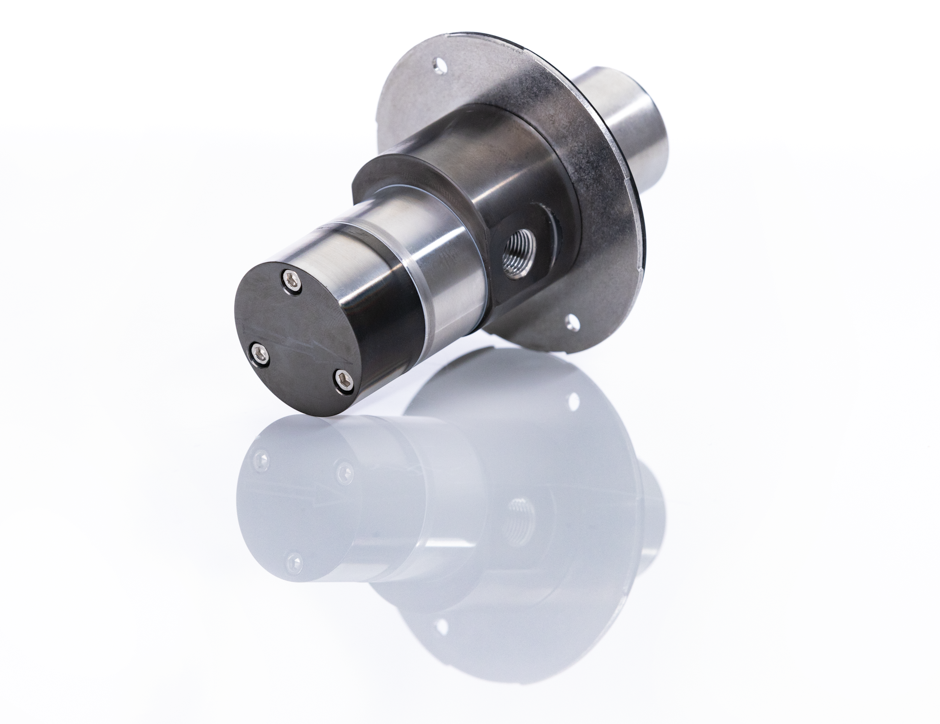

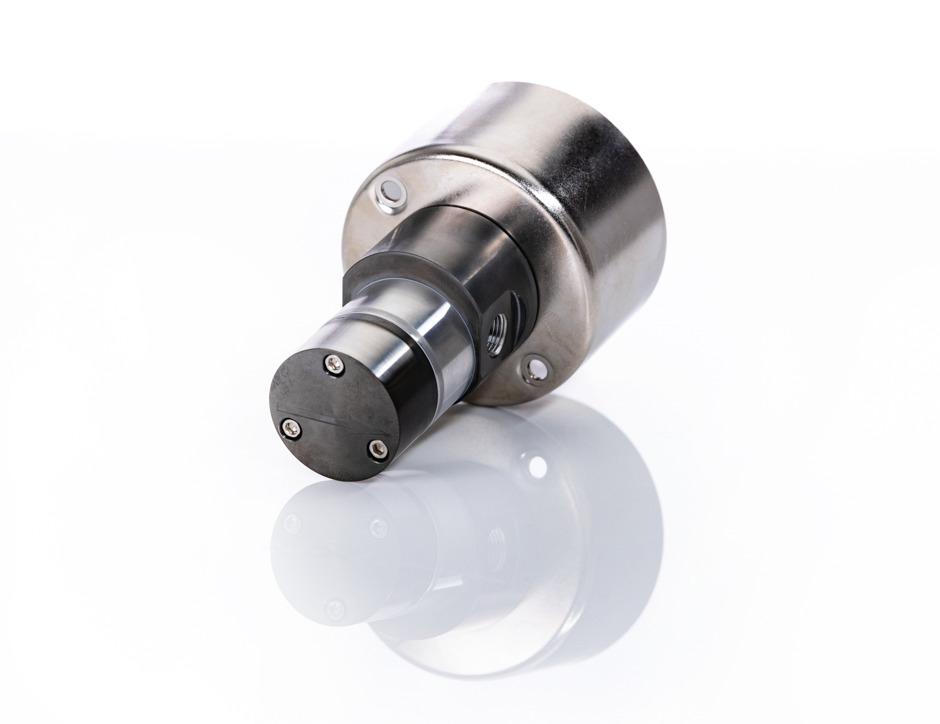

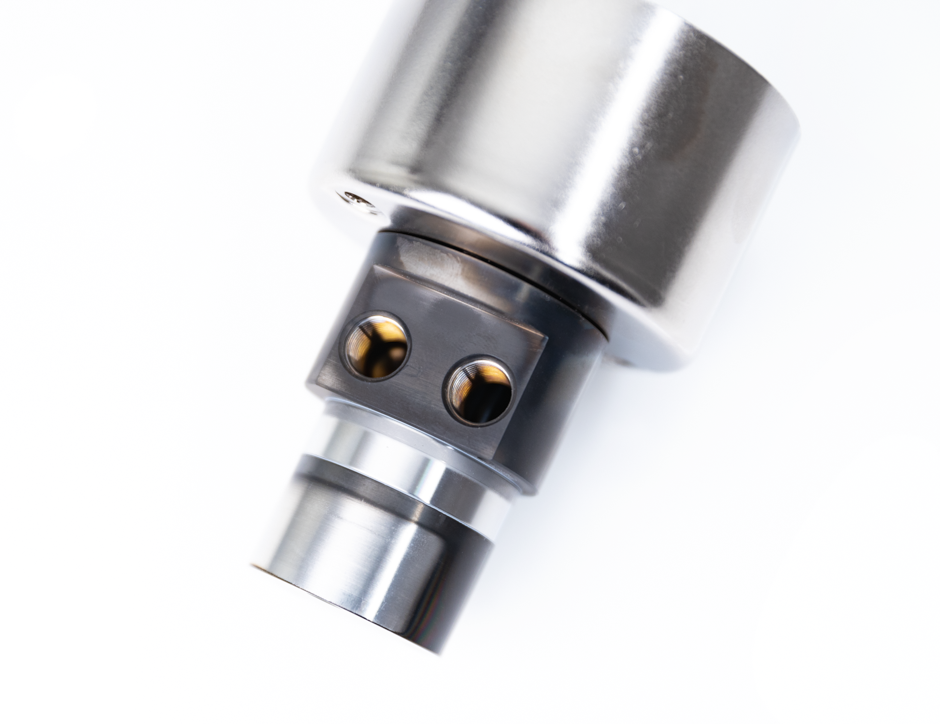

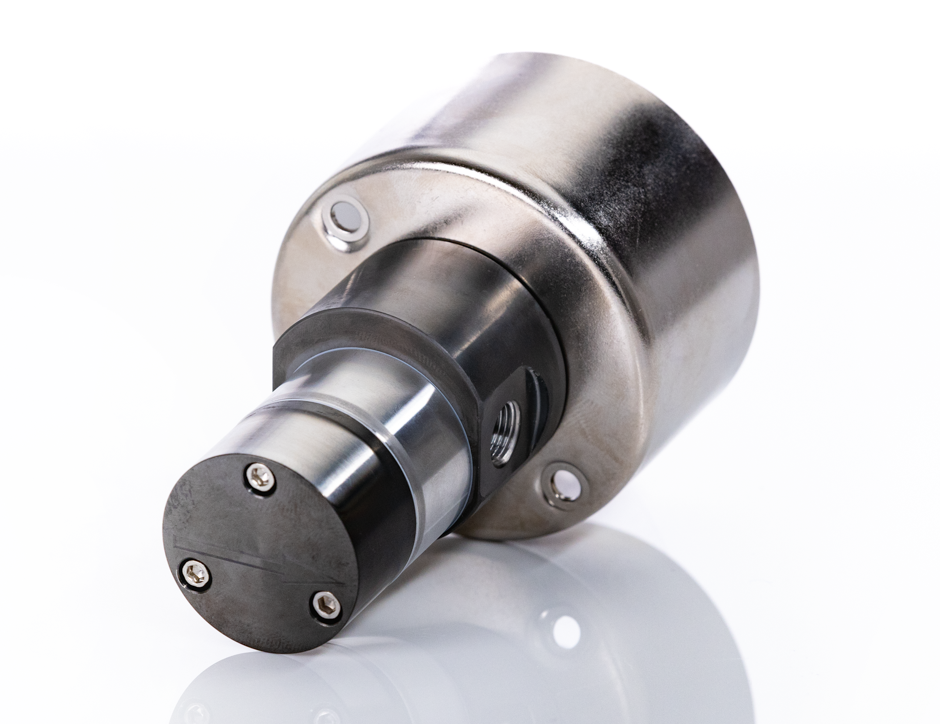

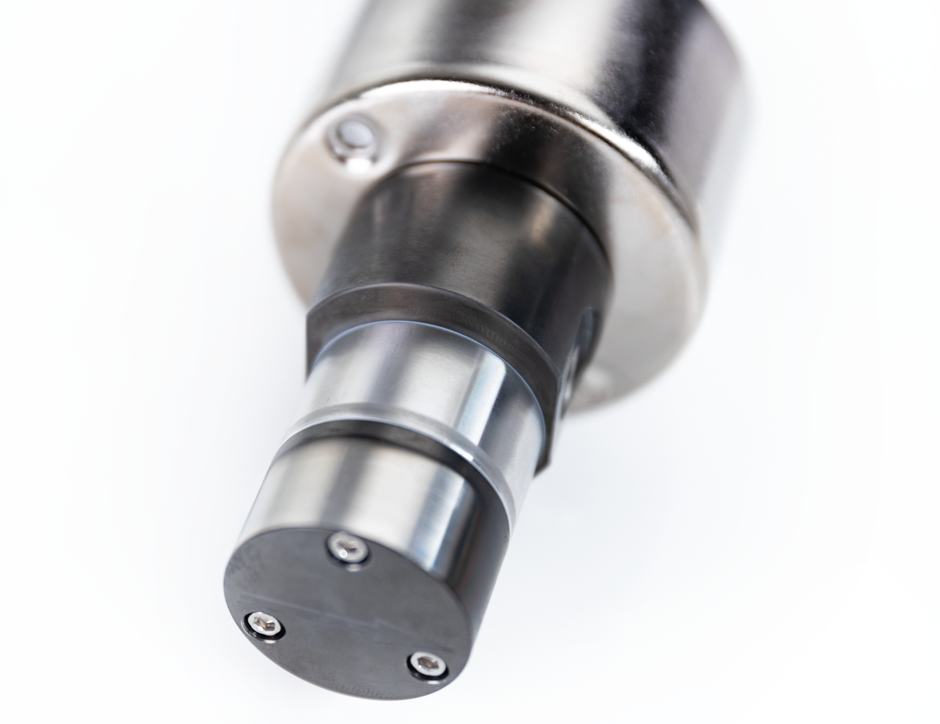

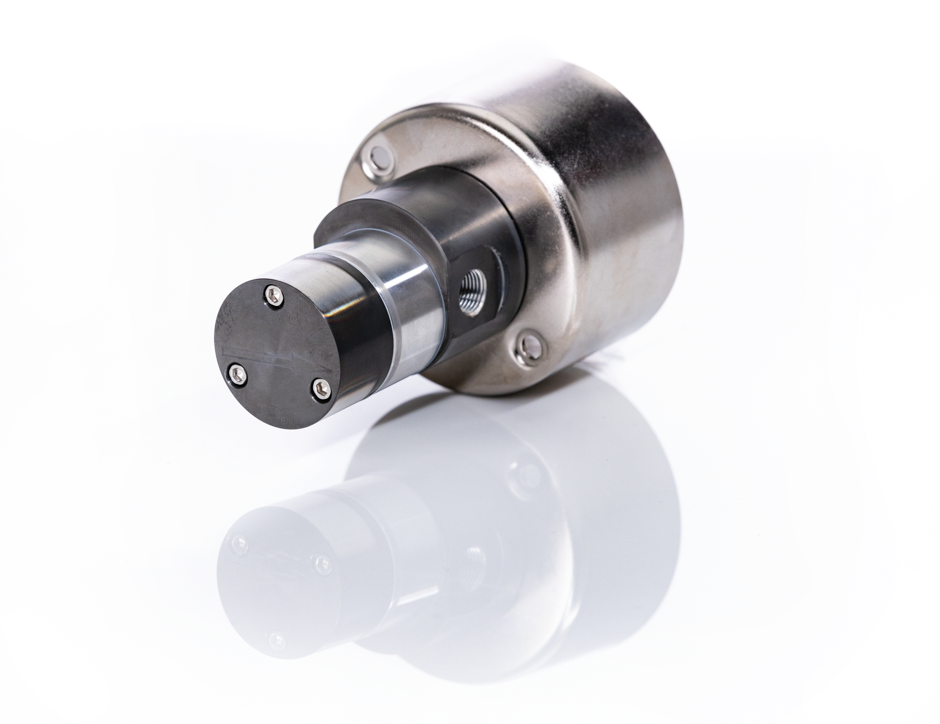

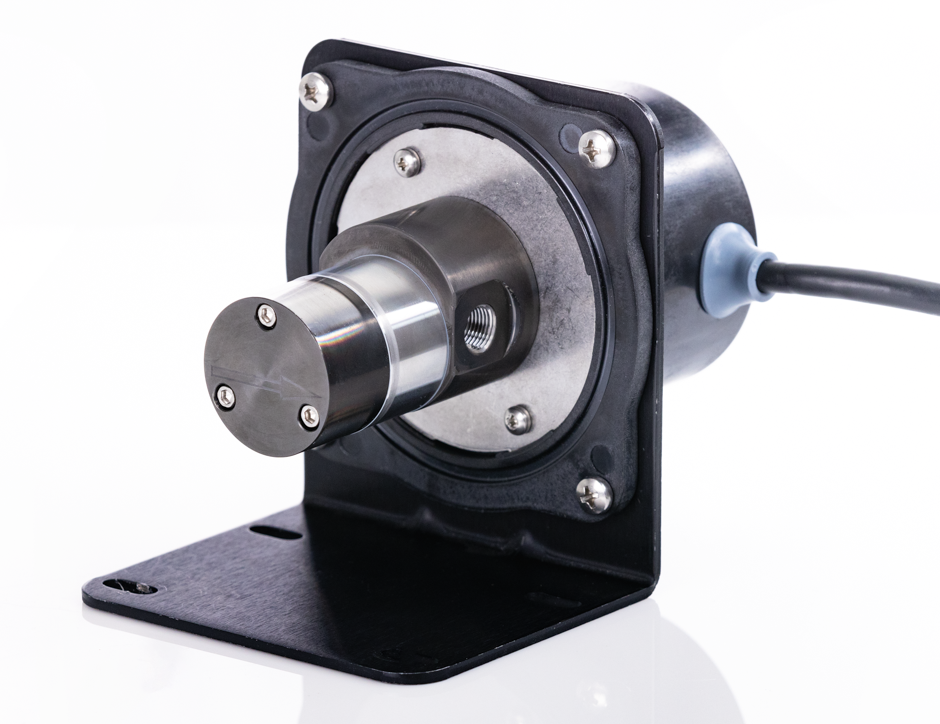

GJR Series
Product Type: Cavity Technology
0.316 ml/rev (N21)
0.64 ml/rev (N23)
500-5500 RPM
158 mL/min | 2.5 US gal/hr
3.4 L/min | 0.89 US gpm
4.0 bar | 58 psi
21 bar | 300 psi
-46 to 132 °C | -50 to 270 °F
0.5 to 1500 cP
0.34 to 0.45 kg | 0.75 to 1.00 lbs
1/8"-28 BSP(F)
- Small Size
- Smooth, Pulseless Delivery
- Chemical and Abrasion Resistant
- Easy to Service
- Proven Reliability
- Advanced Pump Technology
- OEM Configurations
- High-System Pressure Capability
- Enhanced Efficiency
- Gear Set N21: 0.316 ml/rev (0.08 US gal/1000 rev)
- Gear Set N23: 0.64 ml/rev (0.17 US gal/1000 rev)
- Magnetic Drive Gear Pump
- Cavity Style
Documents
- Details
- Features
- Applications
- Documents
Displacement
0.316 ml/rev (N21)
0.64 ml/rev (N23)
Recommended Speed Range
500-5500 RPM
Flow Rate (min)
158 mL/min | 2.5 US gal/hr
Flow Rate (max)
3.4 L/min | 0.89 US gpm
Differential Pressure (max)
4.0 bar | 58 psi
System Pressure (max)
21 bar | 300 psi
Temperature Range
-46 to 132 °C | -50 to 270 °F
Viscosity Range
0.5 to 1500 cP
Weight
0.34 to 0.45 kg | 0.75 to 1.00 lbs
Standard Ports
1/8"-28 BSP(F)
- Small Size
- Smooth, Pulseless Delivery
- Chemical and Abrasion Resistant
- Easy to Service
- Proven Reliability
- Advanced Pump Technology
- OEM Configurations
- High-System Pressure Capability
- Enhanced Efficiency
- Gear Set N21: 0.316 ml/rev (0.08 US gal/1000 rev)
- Gear Set N23: 0.64 ml/rev (0.17 US gal/1000 rev)
- Magnetic Drive Gear Pump
- Cavity Style
Documents
