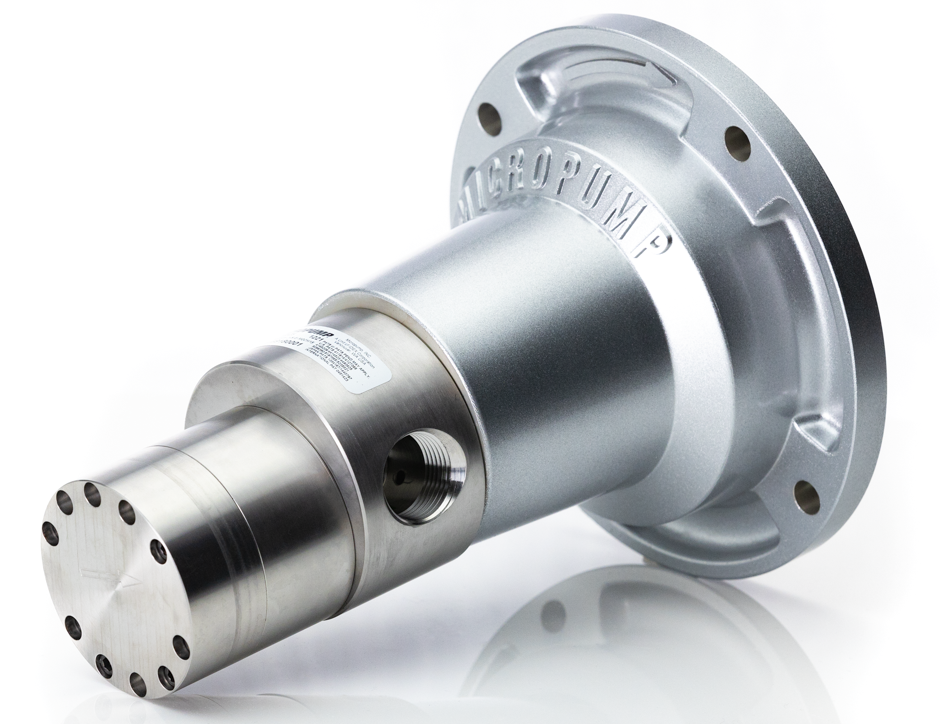

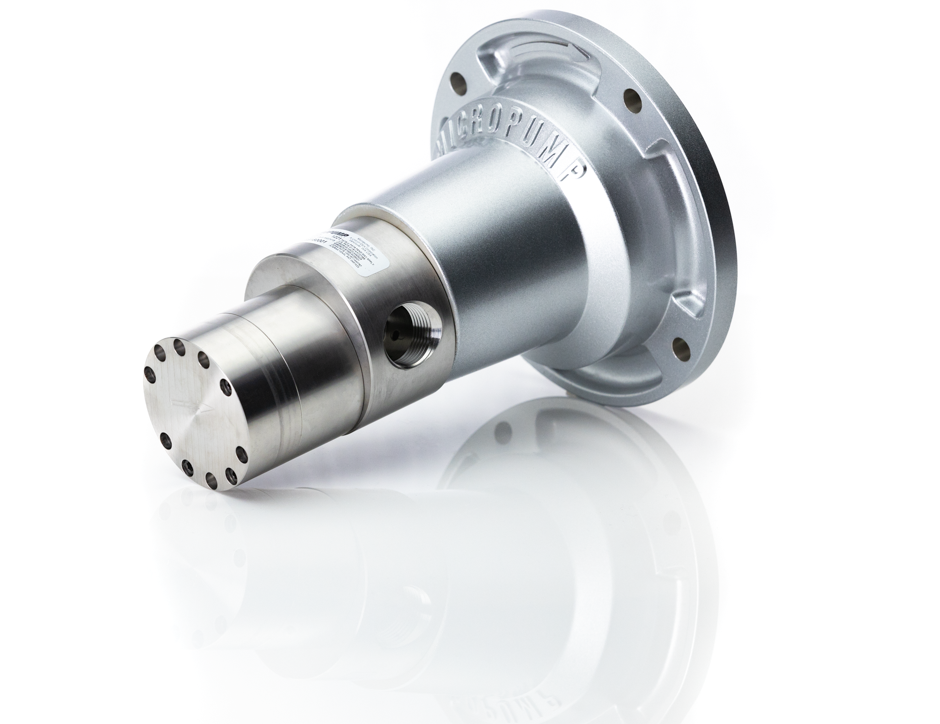

GLH Series
Product Type: Cavity Technology
4.6 ml/rev (H21)
6.2 ml/rev (H23)
7.7 ml/rev (H25)
500-3450 RPM
2.3 L/min | 0.61 US gpm
26.6 L/min | 7.0 US gpm
8.6 bar | 125 psi
103 bar | 1500 psi
-46 to 121 °C | -50 to 250 °F
0.5 to 1500 cP
3.9 kg | 8.6 lbs
3/4"-14 NPT(F)
- Small Size
- Smooth, Pulseless Delivery
- Chemically Resistant
- Easy to Service
- Proven Reliability
- Advanced Pump Technology
- Wide Range of Options
- OEM Configurations
- High-System Pressure Capability
- Enhanced Efficiency
- Gear Set H21: 4.6 ml/rev
- Gear Set H23: 6.2 ml/rev
- Gear Set H25: 7.7 ml/rev
- Magnetic Drive Gear Pump
- Cavity Style
- Helical, Shafted Gears
- Sleeve Bushings
- O-ring Seals
- Base Materials
- 316 Stainless Steel
- Gears
- PTFE
- PEEK
- Static Seals
- Viton®
- PTFE
- Driven & Driving
- Ferrite
- Rare Earth
- Details
- Features
- Applications
- Documents
Displacement

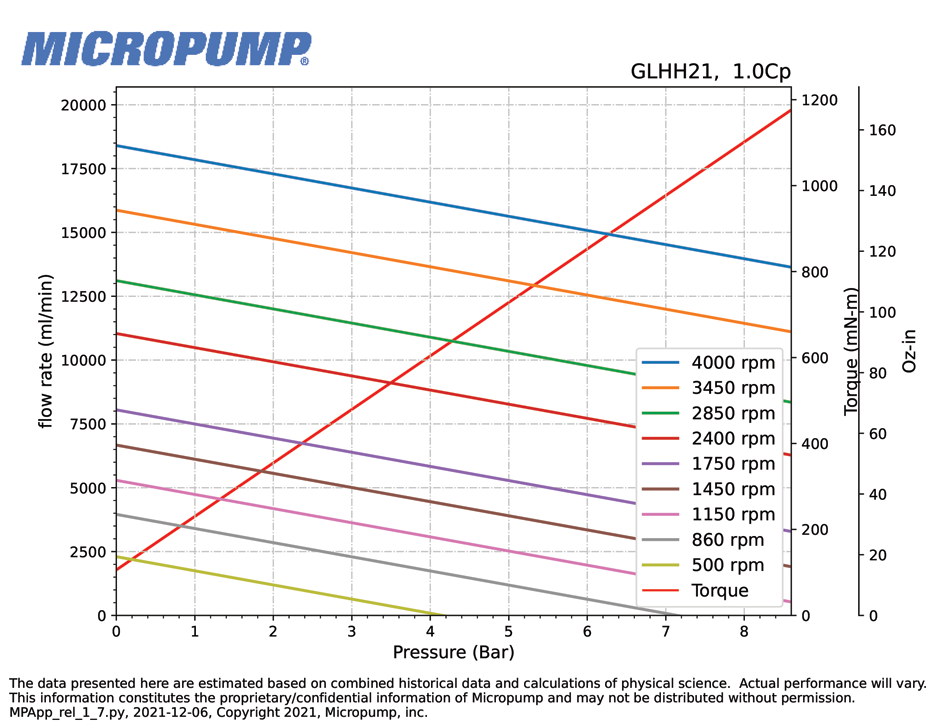

4.6 ml/rev (H21)

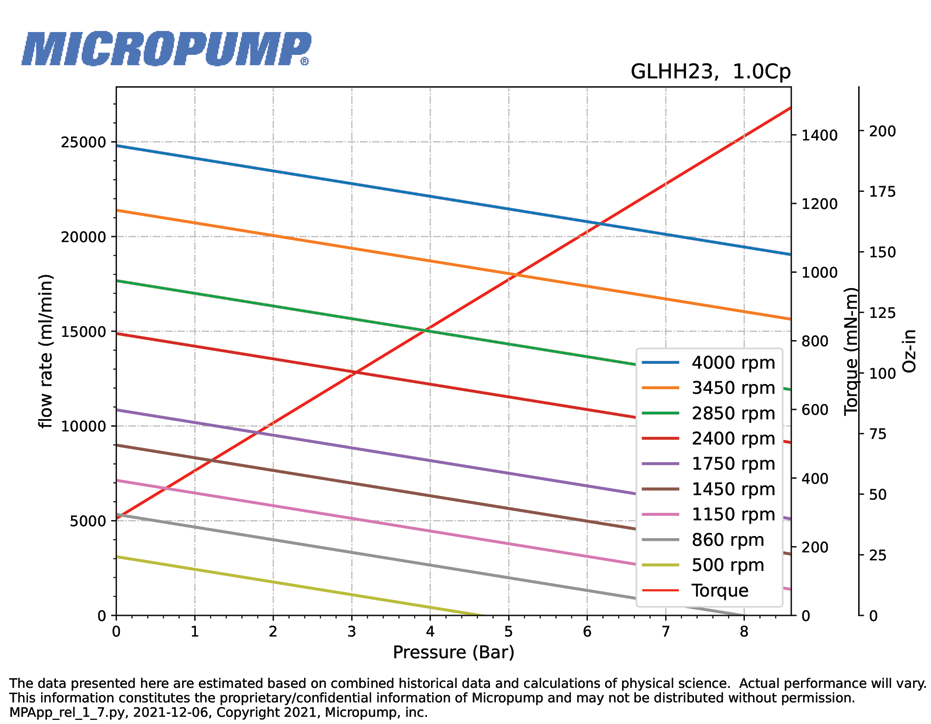

6.2 ml/rev (H23)

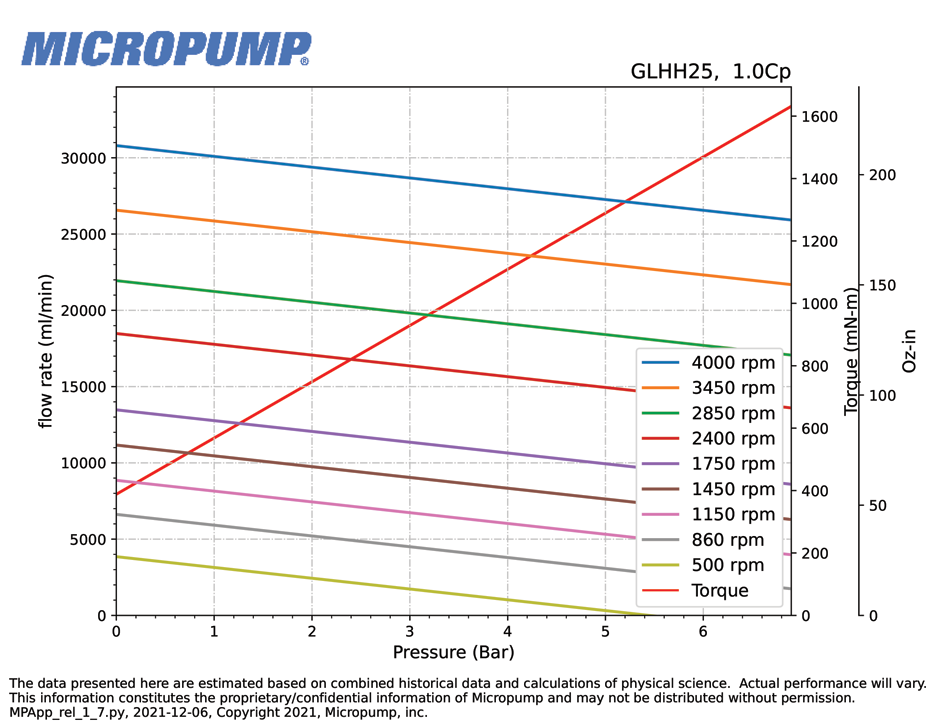

7.7 ml/rev (H25)
Recommended Speed Range
500-3450 RPM
Flow Rate (min)
2.3 L/min | 0.61 US gpm
Flow Rate (max)
26.6 L/min | 7.0 US gpm
Differential Pressure (max)
8.6 bar | 125 psi
System Pressure (max)
103 bar | 1500 psi
Temperature Range
-46 to 121 °C | -50 to 250 °F
Viscosity Range
0.5 to 1500 cP
Weight
3.9 kg | 8.6 lbs
Standard Ports
3/4"-14 NPT(F)
- Small Size
- Smooth, Pulseless Delivery
- Chemically Resistant
- Easy to Service
- Proven Reliability
- Advanced Pump Technology
- Wide Range of Options
- OEM Configurations
- High-System Pressure Capability
- Enhanced Efficiency
- Gear Set H21: 4.6 ml/rev
- Gear Set H23: 6.2 ml/rev
- Gear Set H25: 7.7 ml/rev
- Magnetic Drive Gear Pump
- Cavity Style
- Helical, Shafted Gears
- Sleeve Bushings
- O-ring Seals
- Base Materials
- 316 Stainless Steel
- Gears
- PTFE
- PEEK
- Static Seals
- Viton®
- PTFE
- Driven & Driving
- Ferrite
- Rare Earth
