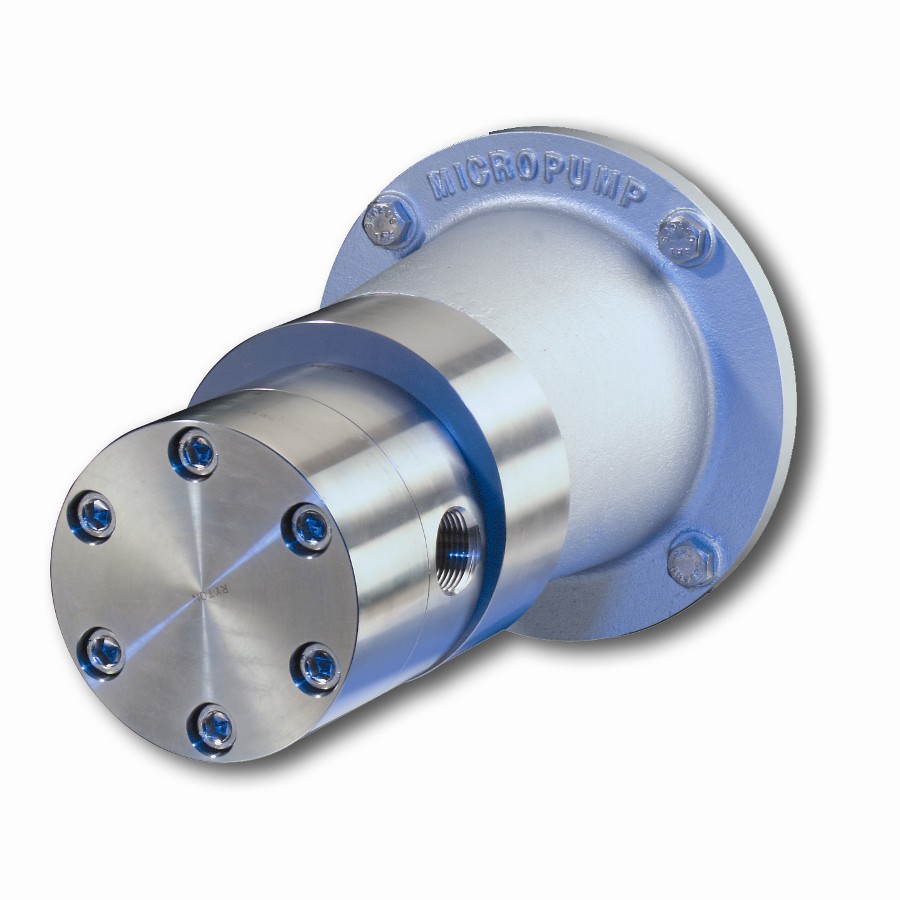

GMH Series
Product Type: Cavity Technology
GMH Series pumps deliver rugged, reliable performance for any high-precision pumping need.
12.2 ml/rev (G25)
500-1750 RPM
6.1 L/min | 1.58/ US gpm
21.3 L/min | 5.6 US gpm
8.7 bar | 125 psi
103 bar | 1500 psi
-46 to 121 °C | -50 to 250 °F
0.2 to 2500 cP
10.9 kg | 24 lbs
3/4"-14 NPT(F)
- Small Size
- Smooth, Pulseless Delivery
- Chemically Resistant
- Easy to Service
- Proven Reliability
- Advanced Pump Technology
- Wide Range of Options
- OEM Configurations
- High-System Pressure Capability
- Enhanced Efficiency
- Gear Set G25: 12.2 ml/rev
- Magnetic Drive Gear Pump
- Cavity Style
- Helical, Shafted Gears
- Sleeve Bushings
- O-ring Seals
- Base Materials
- 316 Stainless Steel/Titanium
- Gears
- PTFE
- PEEK
- Static Seals
- Viton
- PTFE
- Driven & Driving
- Rare Earth
Mechanical Seal Flushing and Cooling
Documents
- Details
- Features
- Applications
- Documents
Displacement
12.2 ml/rev (G25)
Recommended Speed Range
500-1750 RPM
Flow Rate (min)
6.1 L/min | 1.58/ US gpm
Flow Rate (max)
21.3 L/min | 5.6 US gpm
Differential Pressure (max)
8.7 bar | 125 psi
System Pressure (max)
103 bar | 1500 psi
Temperature Range
-46 to 121 °C | -50 to 250 °F
Viscosity Range
0.2 to 2500 cP
Weight
10.9 kg | 24 lbs
Standard Ports
3/4"-14 NPT(F)
- Small Size
- Smooth, Pulseless Delivery
- Chemically Resistant
- Easy to Service
- Proven Reliability
- Advanced Pump Technology
- Wide Range of Options
- OEM Configurations
- High-System Pressure Capability
- Enhanced Efficiency
- Gear Set G25: 12.2 ml/rev
- Magnetic Drive Gear Pump
- Cavity Style
- Helical, Shafted Gears
- Sleeve Bushings
- O-ring Seals
- Base Materials
- 316 Stainless Steel/Titanium
- Gears
- PTFE
- PEEK
- Static Seals
- Viton
- PTFE
- Driven & Driving
- Rare Earth
Mechanical Seal Flushing and Cooling
Documents
