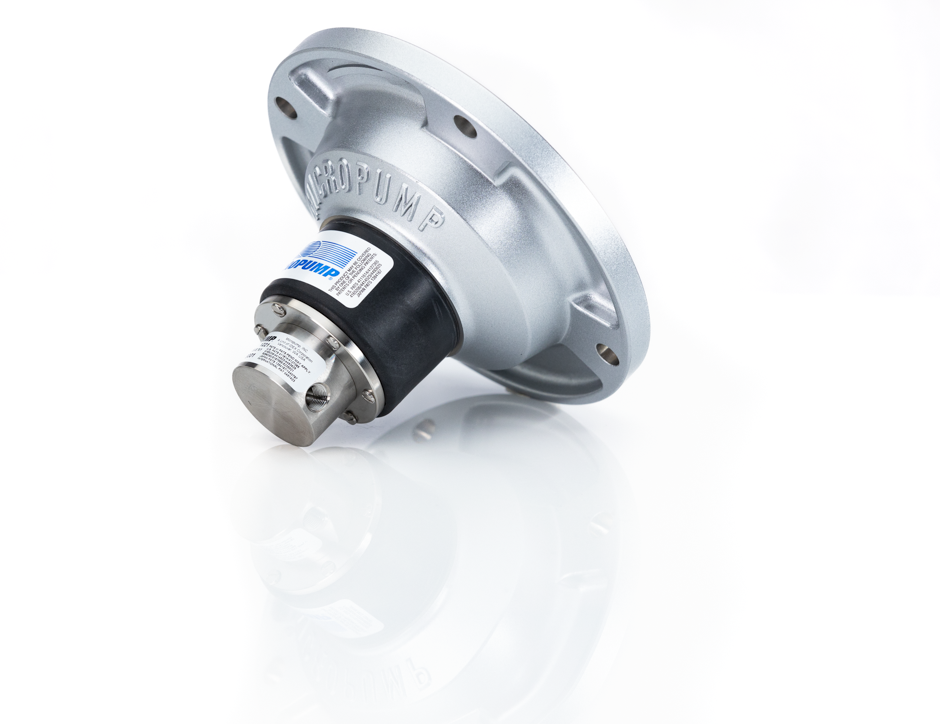

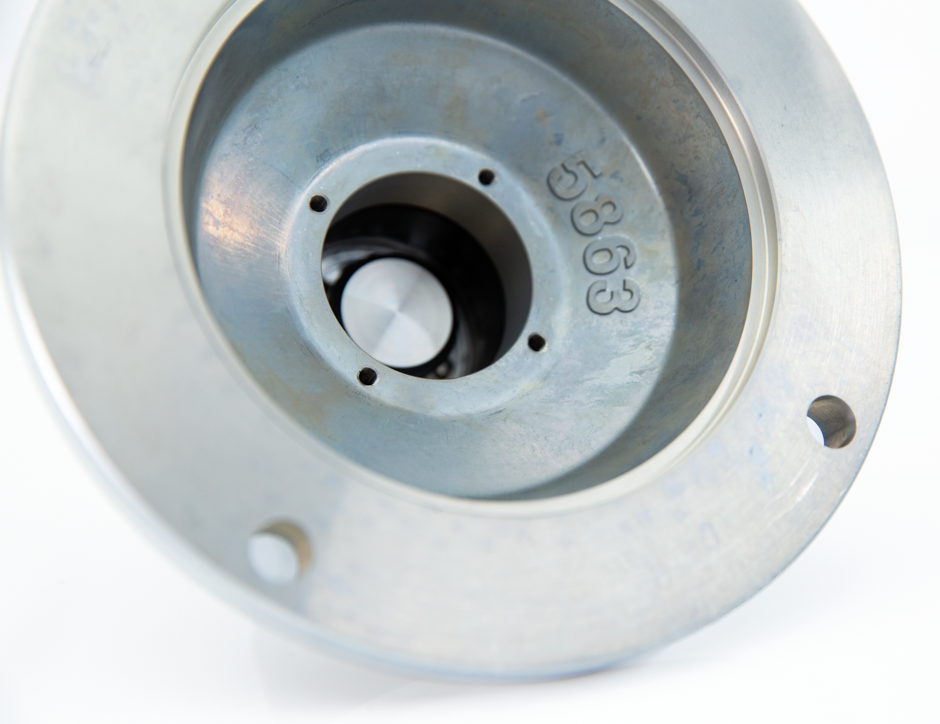

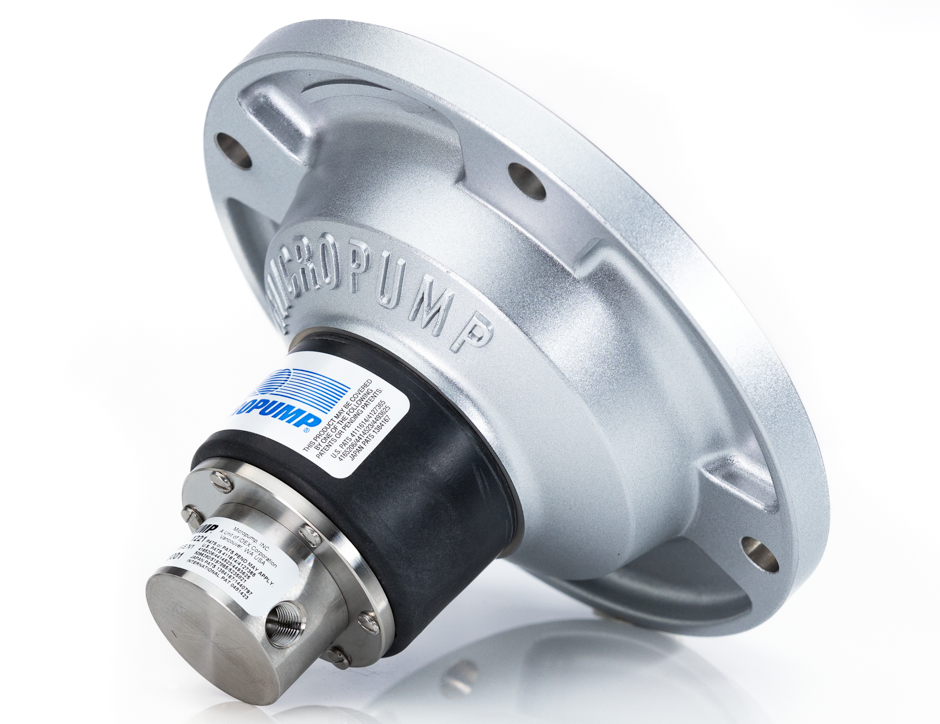

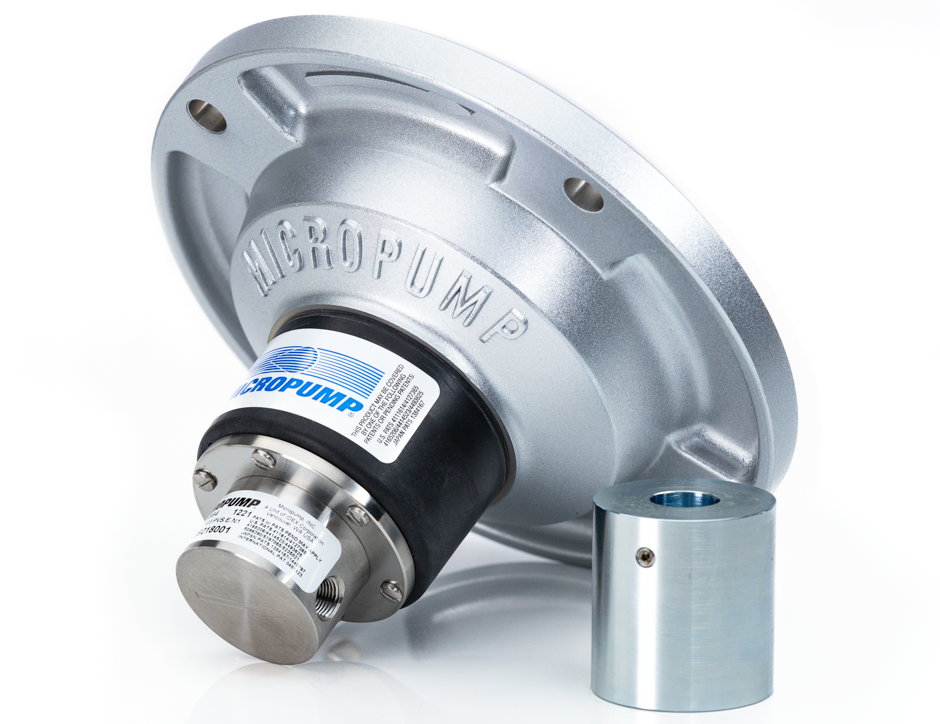

GAH Series
Product Type: Suction Shoe Technology
0.017 ml/rev (X21)
0.042 ml/rev (V21)
0.092 ml/rev (T23)
500-5500 RPM
8.5 mL/min | 0.13 US gal/hr
506 mL/min | 0.134 US gpm
5.2 bar | 75 psi
345 bar | 5000 psi
-46 to 177 °C | -50 to 350 °F
0.5 to 1500 cP
0.34 to 1.1 kg | 0.75 to 2.40 lbs
1/8"-27 NPT(F)
- Small Size
- Smooth, Pulseless Delivery
- Chemically Resistant
- Easy to Service
- Proven Reliability
- Advanced Pump Technology
- Wide Range of Options
- OEM Configurations
- High-System Pressure Capability
- Enhanced Efficiency
- Gear Set X21: 0.017 ml/rev (0.0045 US gal/1000 rev)
- Gear Set V21: 0.042 ml/rev (0.01 US gal/1000 rev)
- Gear Set T23: 0.092 ml/rev (0.02 US gal/1000 rev)
- Magnetic Drive Gear Pump
- Suction Shoe Style
- Spur Gears
- Stationary Shafts
- O-ring Seal
- Base Materials
- 316 Stainless Steel
- Alloy 20
- Titanium
- Alloy 276
- Gears
- Carbon Graphite
- PPS
- PEEK
- PTFE
- Carbon
- Static Seals
- PTFE
- FKM
- EP
- TEV
- FFKM
- Driven & Driving
- Ferrite
- Rare Earth
- Details
- Features
- Applications
- Documents
Displacement
0.017 ml/rev (X21)
0.042 ml/rev (V21)
0.092 ml/rev (T23)
Recommended Speed Range
500-5500 RPM
Flow Rate (min)
8.5 mL/min | 0.13 US gal/hr
Flow Rate (max)
506 mL/min | 0.134 US gpm
Differential Pressure (max)
5.2 bar | 75 psi
System Pressure (max)
345 bar | 5000 psi
Temperature Range
-46 to 177 °C | -50 to 350 °F
Viscosity Range
0.5 to 1500 cP
Weight
0.34 to 1.1 kg | 0.75 to 2.40 lbs
Standard Ports
1/8"-27 NPT(F)
- Small Size
- Smooth, Pulseless Delivery
- Chemically Resistant
- Easy to Service
- Proven Reliability
- Advanced Pump Technology
- Wide Range of Options
- OEM Configurations
- High-System Pressure Capability
- Enhanced Efficiency
- Gear Set X21: 0.017 ml/rev (0.0045 US gal/1000 rev)
- Gear Set V21: 0.042 ml/rev (0.01 US gal/1000 rev)
- Gear Set T23: 0.092 ml/rev (0.02 US gal/1000 rev)
- Magnetic Drive Gear Pump
- Suction Shoe Style
- Spur Gears
- Stationary Shafts
- O-ring Seal
- Base Materials
- 316 Stainless Steel
- Alloy 20
- Titanium
- Alloy 276
- Gears
- Carbon Graphite
- PPS
- PEEK
- PTFE
- Carbon
- Static Seals
- PTFE
- FKM
- EP
- TEV
- FFKM
- Driven & Driving
- Ferrite
- Rare Earth
