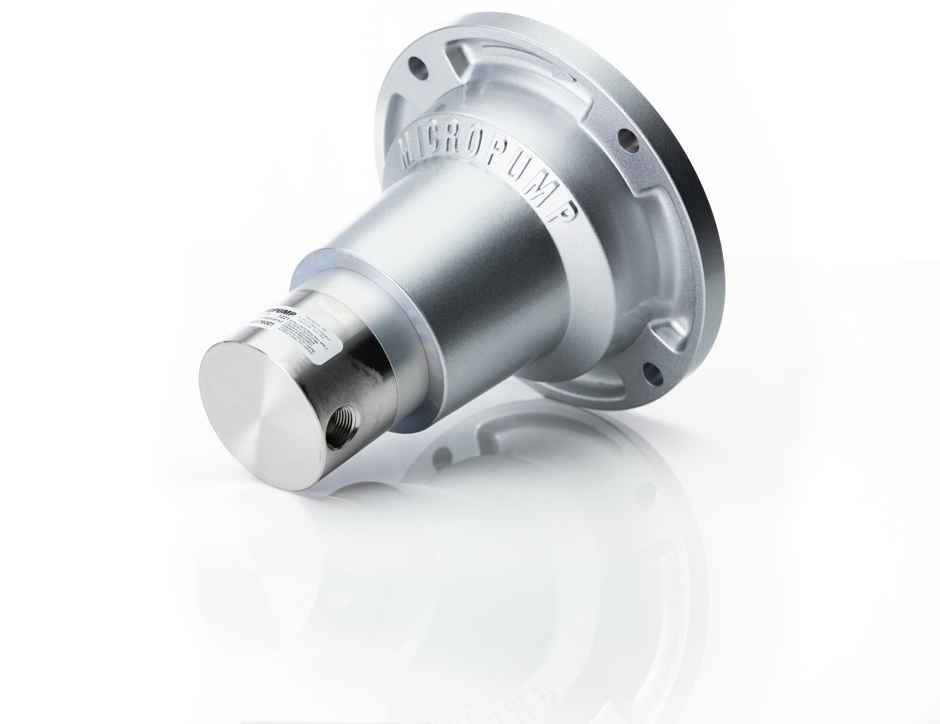

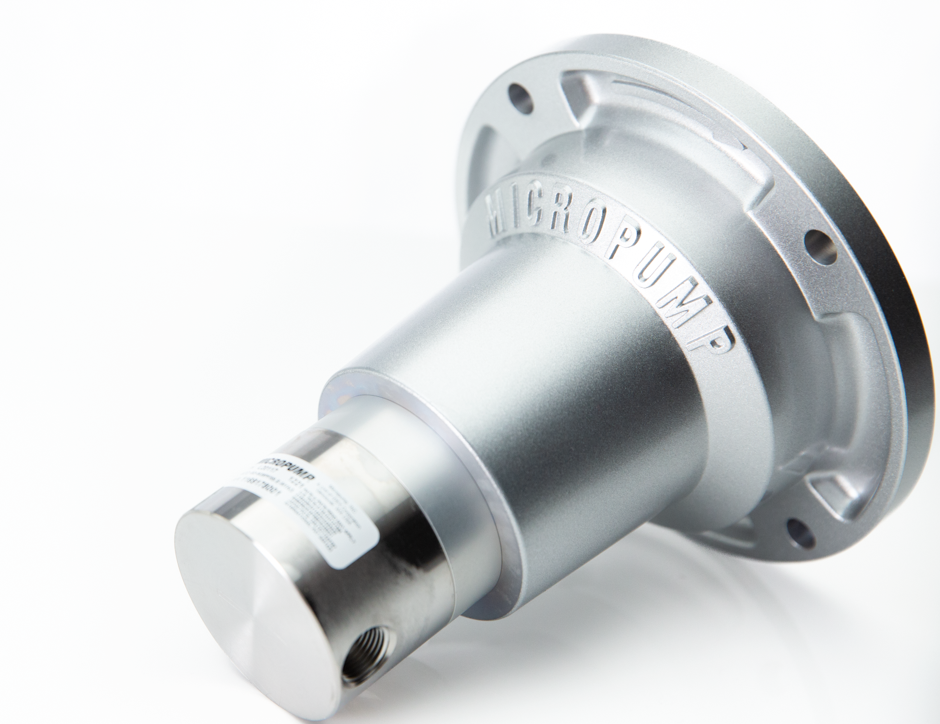

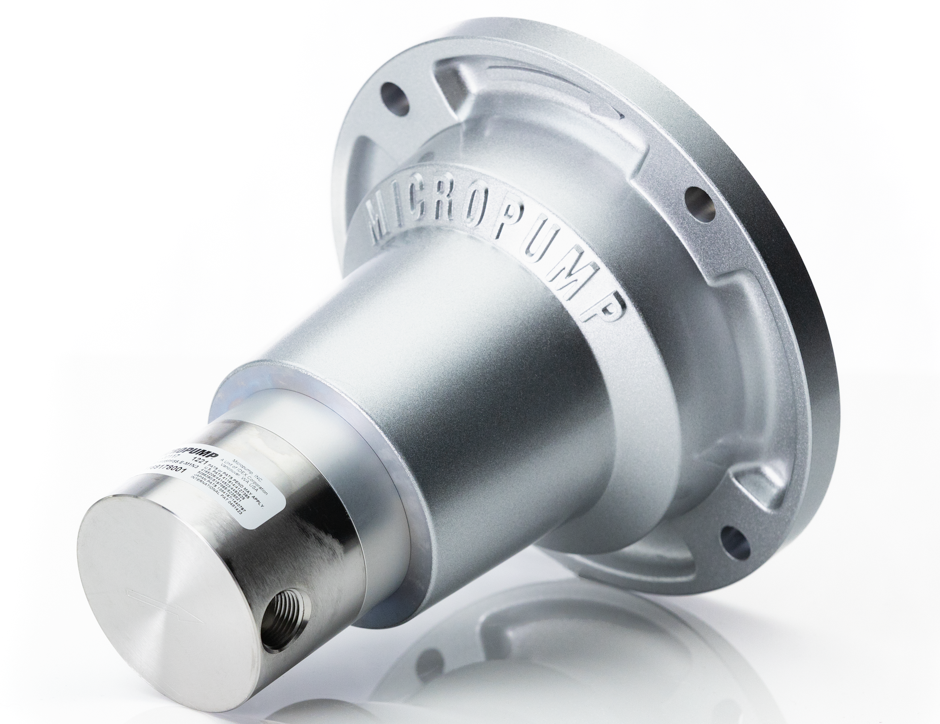

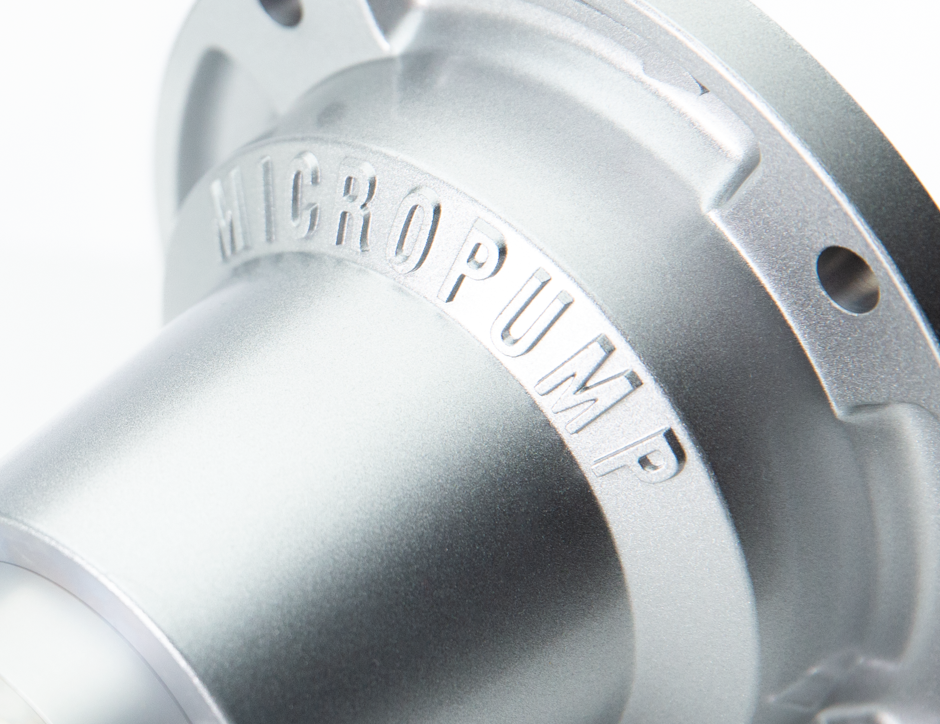

GD Series
Product Type: Cavity Technology
GD Series can be optimized for extended life in aggressive environments with the selection of an abrasion resistant cavity style pump chamber and hardened steel gears. The GD Series can also offer an optional high-powered, high system pressure version for pressures up to 103 bar (1500 psi).
3.48 ml/rev (M35)
500-4000 RPM
1.7 L/min | 0.46 US gpm
13.9 L/min | 3.7 US gpm
6.9 bar | 100 psi
103 bar | 1500 psi
-46 to 204 °C | -50 to 400 °F
0.5 to 1500 cP
2.7 kg | 6.0 lbs
3/8"-18 NPT(F)
- Small Size
- Smooth, Pulseless Delivery
- Chemically Resistant
- Easy to Service
- Proven Reliability
- Advanced Pump Technology
- Wide Range of Options
- OEM Configurations
- High-System Pressure Capability
- Enhanced Efficiency
- Gear Set M35: 3.48 ml/rev (0.92 US gal/1000 rev)
- Magnetic Drive Gear Pump
- Cavity Style
- Three Helical Gears
- Stationary Shafts
- O-ring Seal
- Base Materials
- 316 Stainless Steel
- Gears
- PPS
- PEEK
- Hardened Steel (A10)
- Static Seals
- FKM
- EP
- TEV
- FFKM
- Driven & Driving
- Ferrite
- Rare Earth
Pipeline Sampling
Documents
- Details
- Features
- Applications
- Documents
Displacement
3.48 ml/rev (M35)
Recommended Speed Range
500-4000 RPM

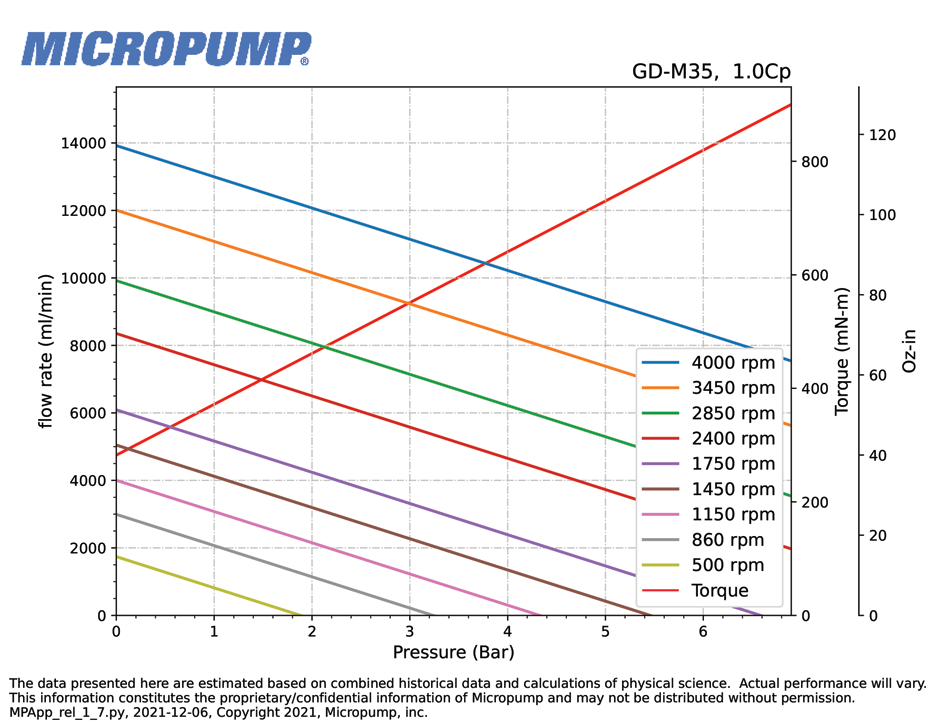

Flow Rate (min)
1.7 L/min | 0.46 US gpm
Flow Rate (max)
13.9 L/min | 3.7 US gpm
Differential Pressure (max)
6.9 bar | 100 psi
System Pressure (max)
103 bar | 1500 psi
Temperature Range
-46 to 204 °C | -50 to 400 °F
Viscosity Range
0.5 to 1500 cP
Weight
2.7 kg | 6.0 lbs
Standard Ports
3/8"-18 NPT(F)
- Small Size
- Smooth, Pulseless Delivery
- Chemically Resistant
- Easy to Service
- Proven Reliability
- Advanced Pump Technology
- Wide Range of Options
- OEM Configurations
- High-System Pressure Capability
- Enhanced Efficiency
- Gear Set M35: 3.48 ml/rev (0.92 US gal/1000 rev)
- Magnetic Drive Gear Pump
- Cavity Style
- Three Helical Gears
- Stationary Shafts
- O-ring Seal
- Base Materials
- 316 Stainless Steel
- Gears
- PPS
- PEEK
- Hardened Steel (A10)
- Static Seals
- FKM
- EP
- TEV
- FFKM
- Driven & Driving
- Ferrite
- Rare Earth
Pipeline Sampling
