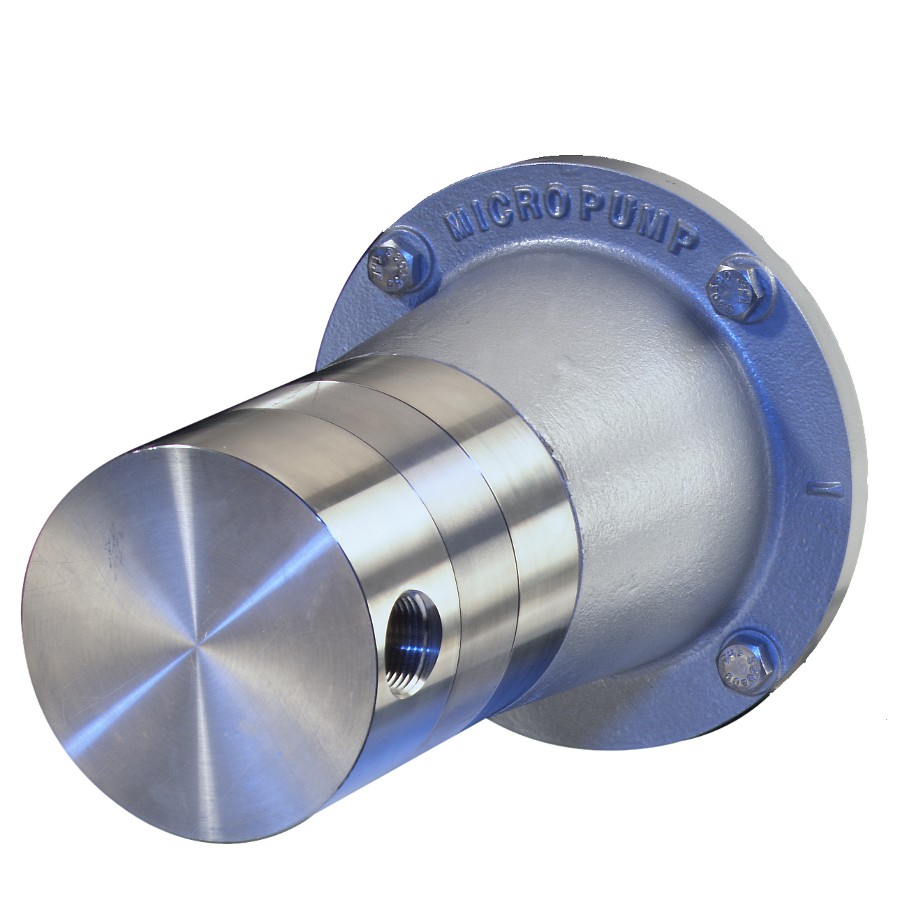

GNH Series
Product Type: Cavity Technology
GNH Series pumps deliver rugged, reliable performance for any high-precision pumping need.
24.5 ml/rev (G35)
500-1750 RPM
12.25 L/min | 3.2 US gmp
42.8 L/min | 11.4 US gpm
6.9 bar | 100 psi
103 bar | 1500 psi
-46 to 121 °C | -50 to 250 °F
0.2 to 2500 cP
8.4 kg | 18.5 lbs
3/4"-14 NPT(F)
- Smooth, Pulseless Delivery
- Chemically Resistant
- Easy to Service
- Proven Reliability
- Advanced Pump Technology
- Wide Range of Options
- OEM Configurations
- High-System Pressure Capability
- Enhanced Efficiency
- Gear Set G35: 24.5 ml/rev
- Magnetic Drive Gear Pump
- Cavity Style
- Helical, Shafted Gears
- Sleeve Bushings
- O-ring Seals
- Base Materials
- 316 Stainless Steel/Titanium
- Gears
- PTFE
- PEEK
- Static Seals
- PTFE
- Driven & Driving
- Rare Earth
Mechanical Seal Flushing and Cooling
Documents
- Details
- Features
- Applications
- Documents

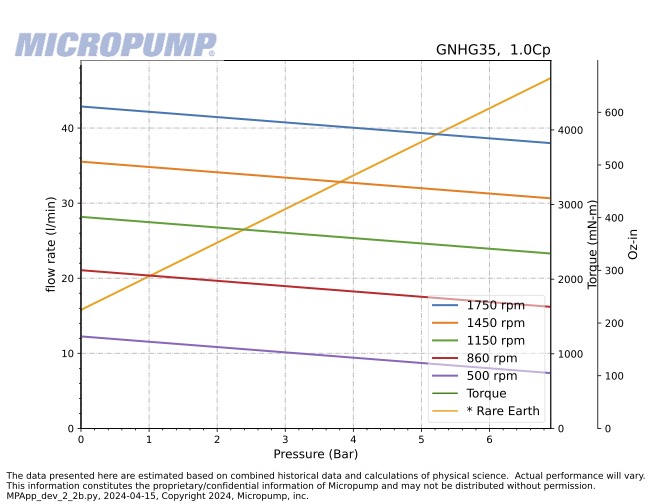

Displacement
24.5 ml/rev (G35)
Recommended Speed Range
500-1750 RPM
Flow Rate (min)
12.25 L/min | 3.2 US gmp
Flow Rate (max)
42.8 L/min | 11.4 US gpm
Differential Pressure (max)
6.9 bar | 100 psi
System Pressure (max)
103 bar | 1500 psi
Temperature Range
-46 to 121 °C | -50 to 250 °F
Viscosity Range
0.2 to 2500 cP
Weight
8.4 kg | 18.5 lbs
Standard Ports
3/4"-14 NPT(F)
- Smooth, Pulseless Delivery
- Chemically Resistant
- Easy to Service
- Proven Reliability
- Advanced Pump Technology
- Wide Range of Options
- OEM Configurations
- High-System Pressure Capability
- Enhanced Efficiency
- Gear Set G35: 24.5 ml/rev
- Magnetic Drive Gear Pump
- Cavity Style
- Helical, Shafted Gears
- Sleeve Bushings
- O-ring Seals
- Base Materials
- 316 Stainless Steel/Titanium
- Gears
- PTFE
- PEEK
- Static Seals
- PTFE
- Driven & Driving
- Rare Earth
Mechanical Seal Flushing and Cooling
Documents
